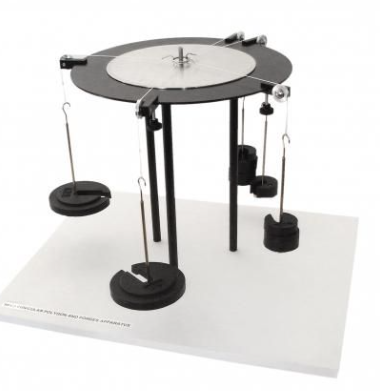

Funicular polygon & forces apparatus

Order Code: 21224591.6.13

Category: General Lab Equipment IV

 benchtop unit for investigation of plane equilibria of forces, vector addition and resolution using weights and cords for force generation, consisting of: disc w. angular scale and centering pin, ring w.



SPECIFICATION

  • benchtop unit for investigation of plane equilibria of forces,
  • vector addition and resolution using weights and cords for force generation, consisting of: disc w.
  • angular scale and centering pin, ring w.
  • 5 cords mounting on centering ring, 5 sets of weights, 5 bearings w.
  • pulleys  cords, moveable angular around the circumference of disc, solid metal base plate; moveable bearings with pulleys fixable by knurled screw.
  • Solid metal base plate is provided with levelling bolts for horizontal alignment.
  • w x d x h:± 565x565x205mm; english operation / instruction manual
