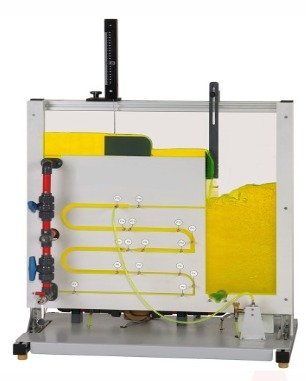

Fundamentals of water flow: Experiments on water flow in open flumes and in pipes, transparent design allows observation of the flow processes.

Features:- water flow in open channels,- experiments on pipe flow,- closed water circuit. Learning objectives/experiments,- fundamentals of pipe flow and open-channel flow,- differential pressure measurement at the orifice, Venturi nozzle, pipe bends and pipe angles, contraction and enlargement,- investigation of weir structures in an open channel ,- in conjunction with a power meter ,-- recording a pump characteristic.
Specification:

• investigation of the fundamentals of different areas of incompressible flow

• closed water circuit with pump

• transparent pipe section and open channel

• experiments on pressure losses at pipe bends and pipe angles, Venturi nozzle, orifice plate

• one broad-crested weir and one sharp-crested weir

• horizontally travelling level gauge with vertically travelling probe tip to measure the water levels

• pressure measuring points for differential pressure measurement before and after the respective pipe resistances

• measurement of the power consumption of the pump a power meter

• software for data acquisition via USB under Windows 10. Technical data:Pump, 3 stages,- max.

• power consumption: 100W,- max. flow rate: 83L/min,- max. head: 6m Electronic water level gauge,- measuring range: 0...200mm, graduation: 1mm- travel: max. 205mm. Measuring ranges,- differential pressure: 0...600mbar,- flow rate: 3,5...50L/min,230V, 50Hz, 1 phase
