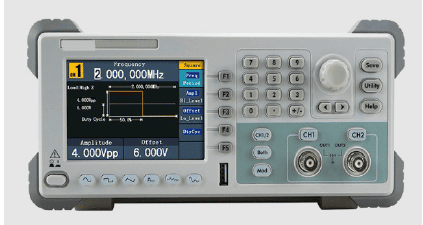

Function Generator
Order Code: 24257624.32
Category: General Lab Equipment V
1. Operating Modes Supports Sine, Square, Triangle, and DC waveforms. Features free-running internal sweep and external frequency modulation. Operates with or without DC offset. Mode and frequency displayed on LCD scr...
SPECIFICATION
1. Operating Modes
-
Supports Sine, Square, Triangle, and DC waveforms.
-
Features free-running internal sweep and external frequency modulation.
-
Operates with or without DC offset.
-
Mode and frequency displayed on LCD screen.
2. Frequency Specifications
-
Frequency Range: 0.3 Hz to 3 MHz
-
Range Selection: Microprocessor-based
-
Frequency Display Accuracy:
-
Up to 3 Hz: ± (1% + 3 digits)
-
3 Hz to 3 MHz: ± (5 × 10?? + 1 digit)
-
3. Waveform Characteristics
-
Sine Wave Distortion:
-
0.3 Hz – 100 kHz: Max. 0.5%
-
100 kHz – 300 kHz: Max. 1.5%
-
300 kHz – 3 MHz: Max. 3%
-
-
Square Wave Rise Time: ≤ 40 ns (typical)
-
Level Flatness (Sine/Triangle):
-
0.3 Hz – 300 kHz: Max. 0.2 dB
-
300 kHz – 3 MHz: Max. 0.5 dB
-
4. Output
-
Output Voltage:
-
10 Vpp into 50 Ω load
-
Max. 20 Vpp (Open Circuit)
-
-
Attenuation:
-
Max. 60 dB
-
Two steps: 20 dB ± 0.2 dB each
-
Variable Attenuation: 0 to 20 dB
-
5. Modulation & Sweep
-
Modulation Type: Internal sweep or external frequency modulation
-
Sweep Speed: 20 ms to 4 seconds
6. Display
-
4-digit backlit LCD display for frequency and mode indication
7. Power Requirements
-
Power Supply: 230 V ±10%, 50 Hz
8. Operating Conditions
-
Designed for general laboratory use under standard environmental conditions
