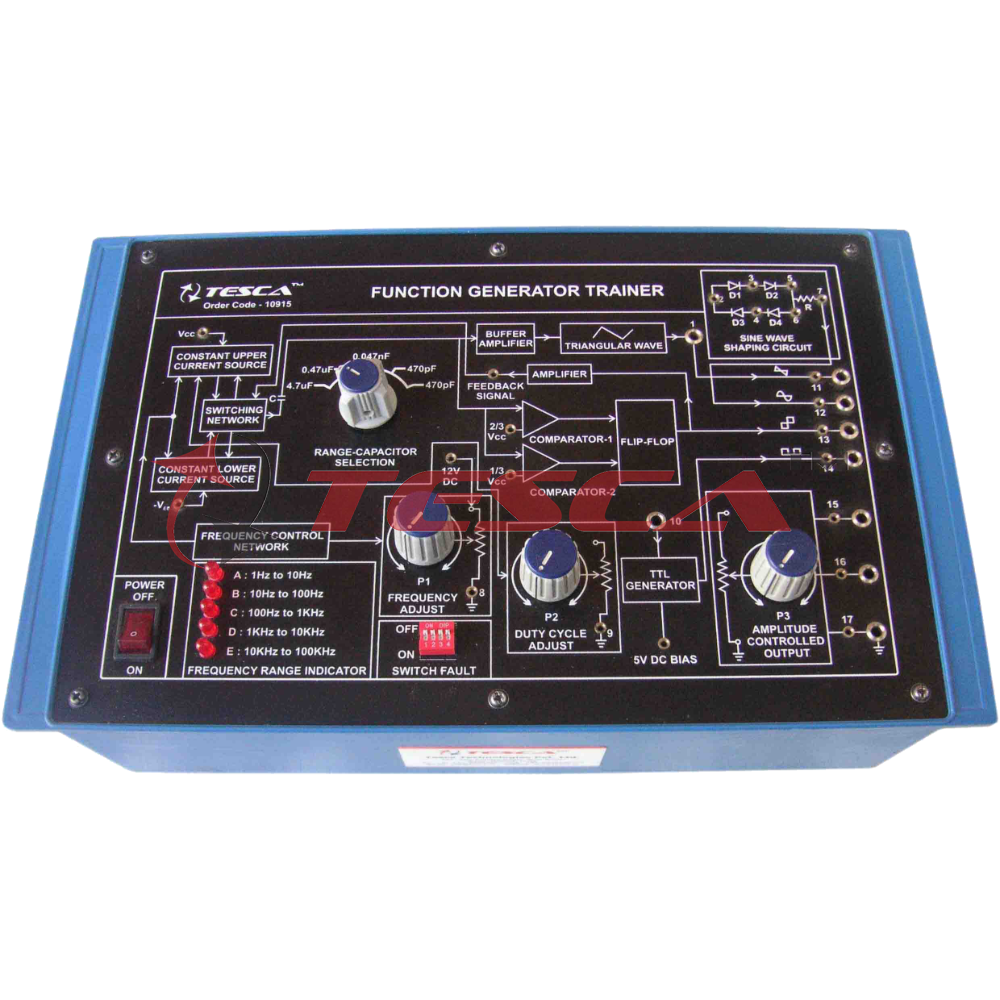

Function Generator with Frequency Counter
Order Code: 22236082.29
Category: General Lab Equipment I
The “Function Generator Trainer ” is a versatile training kit for Electrical and Electronics Laboratories. It is designed to explain the fundamentals of Signal Generation. A Function Generator is a product that can produce various pattern...
SPECIFICATION
The “Function Generator Trainer ” is a versatile training kit for Electrical and Electronics Laboratories. It is designed to explain the fundamentals of Signal Generation. A Function Generator is a product that can produce various patterns of Voltage at a variety of Frequencies and Amplitudes. This Function Generator Trainer allows students to produce the different waveforms and to understand the concept of their generation.
Features:
- A low cost trainer demonstrating all basic concepts of Function Generator
- Exclusive presentation and easy illustration of each block
- Designed considering all safety standards
- Low sine wave distortion
- Low variation with temperature
- Fault creation and troubleshooting
- Onboard Frequency range display
- Provided with elaborated operating manual
Tecnical Specification:
- Frequency Ranges : Selectable
- 1 Hz to 10 Hz
- 10 Hz to 100 Hz
- 100 Hz to 1 KHz
- 1 KHz to 10 KHz
- 10 KHz to 100 Khz
- Amplitude Control Output
- Sine Wave : 6V VPP
- Square Wave : 6V VPP
- Triangular Wave : 6V VPP
- TTL Output : 5V
- Sine Wave Generation : By Wave Shaping Circuit
- Switched Faults : 4 Nos.
- Fuse : 500 mA, slow blow
- Power Supply : 220VAC, 50 Hz ±10%
