Free and Forced Convection

Order Code: 19203659A.11

Category: General Lab Equipment III

 It should be bench-mounting equipment includes a vertical duct that holds the chosen heat transfer surface and all instruments needed.  Should Include three of the most common heat transfer surfaces: flat plate, pinned and finned &n...



SPECIFICATION

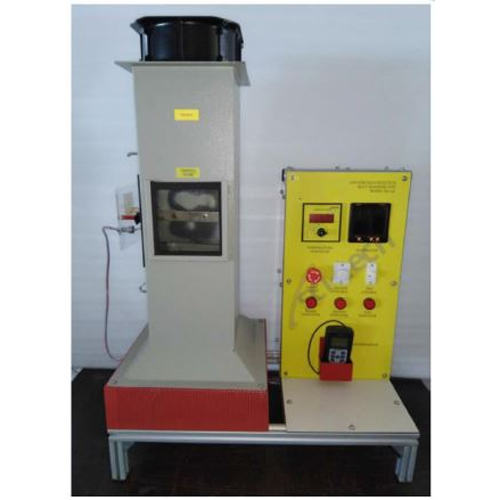

  •  It should be bench-mounting equipment includes a vertical duct that holds the chosen heat transfer surface and all instruments needed.
  •  Should Include three of the most common heat transfer surfaces: flat plate, pinned and finned
  •  Thermocouples and a sensitive anemometer measure temperatures and air velocity shown on a digital display
  •  Should have additional hand-held thermocouple probe included
  •  to measure temperatures along the length of the pins and fl ns of two heat transfer surfaces
  •  Should have variable-speed fan and variable power heat source for a range of tests
  •  Should be supplied with data acquisition system
  •  Students should be able to do the following experiments,
  •  Comparing free and forced convection for different surfaces
  •  Comparison of free convection from vertical and horizontal (finned) surfaces
  •  Comparison of heat transfer surface efficiency
  •  Temperature distribution along finned and pinned surfaces
