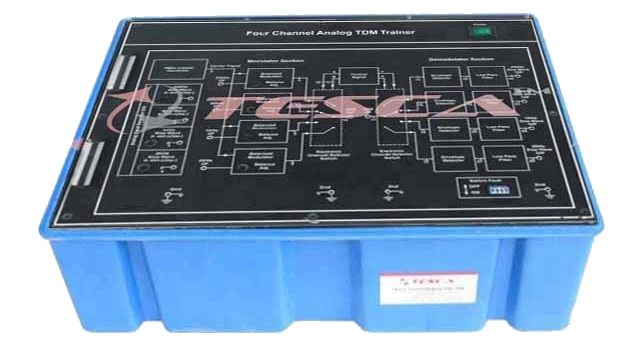

Four Channel Analog TDM Trainer

Order Code: 40542

Category: Communication Trainers

The Four channel analog TDM trainer demonstrate Time division multiplexing technique. The trainer provides all necessary inputs and connections for students to study amplitude modulation, demodulation, multiplexing and demultiplex...



SPECIFICATION

The Four channel analog TDM trainer demonstrate Time division multiplexing technique. The trainer provides all necessary inputs and connections for students to study amplitude modulation, demodulation, multiplexing and demultiplexing techniques. The trainer is student friendly & completely self contained, having all the basic required circuits and controls on board. Student troubleshooting work is included through switched faults in the trainer.

Technical Specification
  1. Crystal frequency : 1 MHz
  2. On-board generators : Four Adjustable amplitude
  3. sine wave generators of 250
  4. Hz, 500 Hz ,1 KHz and 2 KHz
  5. Input channels : Four
  6. Multiplexing : Time division multiplexing
  7. Modulation : DSB / DSBSC modulation On-board control
  8. signal frequency : 8 KHz, 16 KHz
  9. Test points : 29
  10. Interconnections : 2 mm sockets
  11. Power : 220 V ±10 %, 50 Hz / 60 Hz on request
  12. Power Consumption : 4.8 VA(approx.)
  13. Dimensions (mm) : W 340 × D 240 × H 105
  14. Weight : 1.8 Kg (approx.)
  15. Accessories : Manual, Set of patch cord, line cord
