Flow Through Orifices
Order Code: 24258098.15
Category: General Lab Equipment V

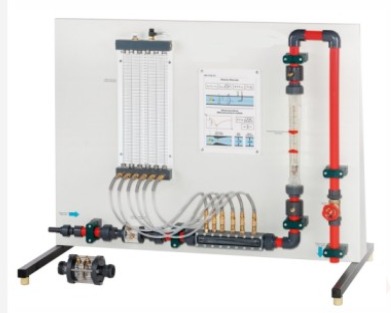

FLOW THROUGH ORIFICES: Comparison of different measuring methods and determining the flow coefficient. Features:- different methods of flow rate measurement,-visualisation of the pressure distribution in Venturi nozzle or measuring o...
SPECIFICATION
FLOW THROUGH ORIFICES: Comparison of different measuring methods and determining the flow coefficient.
Features:- different methods of flow rate measurement,-visualisation of the pressure distribution in Venturi nozzle or measuring orifice/measuring nozzle, Learning objectives/ experiments,- flow measurement with,-- orifice plate
flow meter and measuring nozzle,-- Venturi nozzle,--rotameter,- pressure measurement with Pitot tube,- comparison of different instruments for flow measurement,- determining the corresponding flow coefficients,- calibrating measuring instruments.
Specification:
-
different methods of flow rate measurement
-
measuring instruments: orifice plate flow meter/measuring nozzle, Venturi nozzle and rotameter
-
6 tube manometers to determine the pressure distribution in Venturi nozzle, orifice plate flow meter and measuring nozzle
-
measurement of the total pressure with Pitot tube
-
flow rate determined by base module
-
water supply via base module or via laboratory supply. Technical data:Venturi nozzle: A=84...338mm2,- angle at the inlet: 10,5°,- angle at the outlet: 4°. Orifice plate flow meter: Ø 14mm, Measuring nozzle: Ø 18,5mm,Rotameter: max. 1700L/h ,Measuring ranges,- pressure: 6x 0...390mm WC.
