Key Features
• Compliance with International Standards: Manufactured according to the highest standards from USA, UK, Japan, and Switzerland, ensuring precise and reliable results.

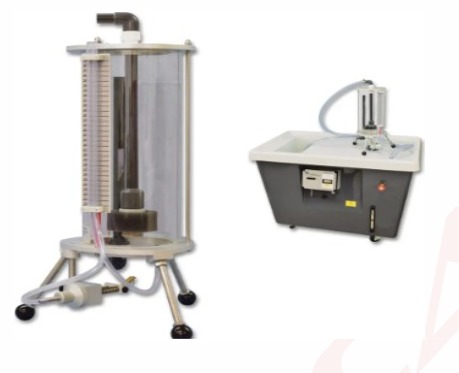

• Cylindrical Tank with Adjustable Diffuser: The cylindrical tank is designed with an adjustable diffuser, allowing for accurate flow regulation through different orifices and supporting a range of flow rates.
• Comprehensive Flow Measurement: Provides the ability to measure important flow parameters, such as decrease in flow, contraction of the stream, and energy loss.
• Versatile Orifice Shapes: The apparatus supports various orifice shapes, giving students the opportunity to study the flow characteristics of sharp-edged, circular, triangular, and square orifices.
• Transparent Tank for Visibility: The transparent cylindrical tank allows for clear observation of the water flow and orifice operations.
• Easy to Use: The tank has a mounting system for easy swapping and use of different orifices, allowing for quick adjustments and experiments.
• Sharp-Edged Orifice Included: The apparatus comes with a sharp-edged orifice pre- mounted, allowing students to begin experiments right away.
• Water Overflow Control: An overflow pipe helps maintain the proper water level in the tank, ensuring accurate flow measurements.

Technical Specifications
• Sharp-Edged Orifice:
   • Diameter: 13 mm
• Circular Orifice Dimensions:
   • Length: 13 mm
   • 60° Contraction and 60° Diverging Section
   • Length: 13 mm, with a 29 mm diameter bell-mouth approach to a 60° diverging section
   • Length: 60 mm, with a 29 mm diameter bell-mouth approach to a 51 mm long parallel section
   • Length: 60 mm, with a 29 mm diameter bell-mouth approach to a 30° diverging section and 25 mm long parallel section
• Triangular Orifice Dimensions:
   • Each side: Nominal 12.1 mm, with a 1.5 mm corner radius

• Square Orifice Dimensions:
   • 9 mm square
• Orifice Material: Aluminum, ensuring durability and accurate flow measurements.
• Tank Material: Transparent, robust, and corrosion-resistant for long-lasting performance.
• Required Accessories: Includes a printed operation manual, Pitot tube, sharp blade, and all necessary tubing and pipe clips
