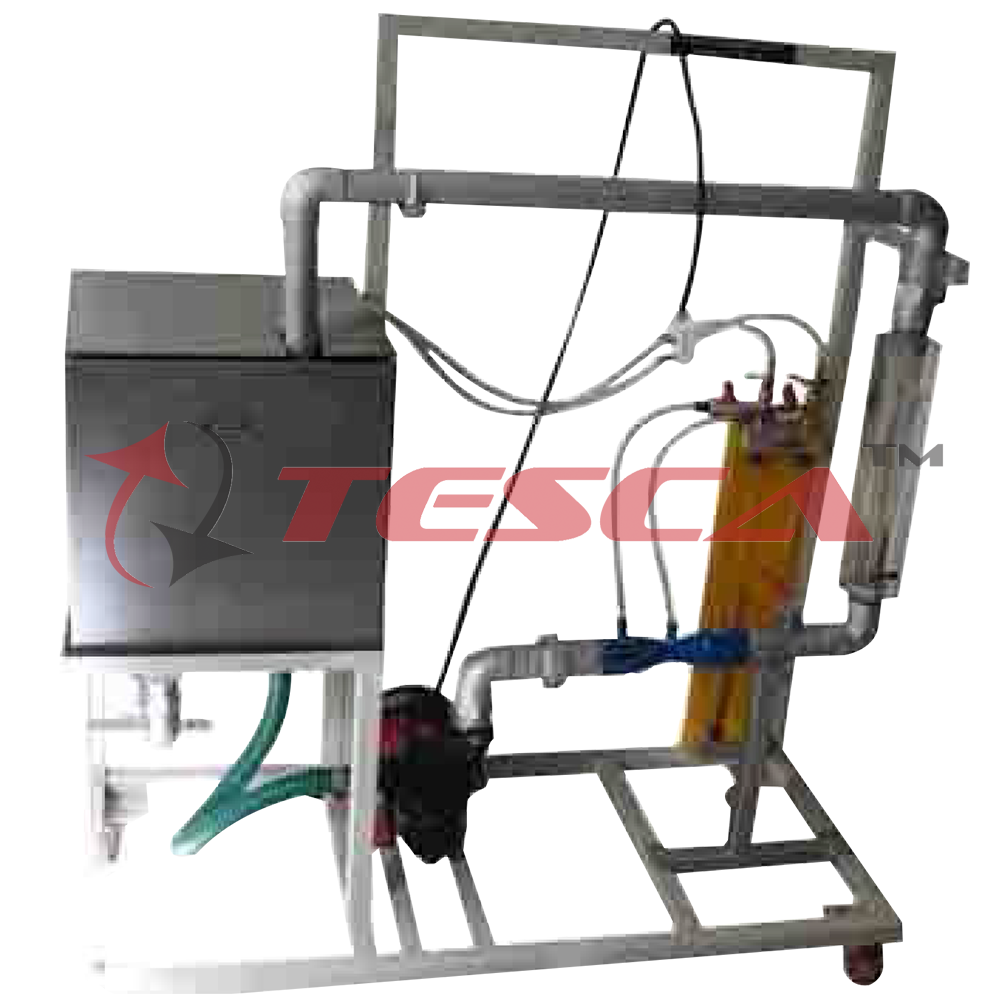

Flow Measurement setup using Venturi Tube

Order Code: 52344

Category: Process Control Trainers

The Flow Measurement using Rotameter gives an idea regarding Flow measurement using Venturi Tube. Features Compact Ergonomic Design. User Friendly, Self Explanatory Systems. Robust Construction. Enhanced Electrical Safety Consideration...



SPECIFICATION

The Flow Measurement using Rotameter gives an idea regarding Flow measurement using Venturi Tube.

Features

  1. Compact Ergonomic Design.
  2. User Friendly, Self Explanatory Systems.
  3. Robust Construction.
  4. Enhanced Electrical Safety Considerations.
  5. Training Manuals mimic Charts for Operation Ease.
  6. Inbuilt Safety Measures to avoid improper usage.

Technical Specification

  1. Sump tank - Material: Stainless Steel, 2 mm thick/P.P 5mm thick
    1. Capacity: 30 litres, Dimension: 1ft (L) x 1ft (W) x 1 ft (H).
  2. Piping- 1/½’’, GI, Class B, with 1/½’’ ball valves: 10 nos
  3. Measuring Tank- Material: Acrylic 3mm thick, with measurement Scale.
    1. Capacity: 20 liters, Dimension: 8”(L) x 8” (W) x 10” (H).
  4. Centrifugal Pump- 1/½’’H.P., 230 V AC supply
  5. Rotameter- Range:0-2000 LPH, Glass tube type/acrylic body, Bob Material: SS 304
    1. Connection: 1’’, Mounting: Inlet Bottom


Outlet Top.

  1. Ventury- 1/½’’ Line size
  2. Manometer- U-Tube manometer, H: 400 mm, Panel mounting type
  3. System Dimensions- 4Ft. (L) X 2 Ft. (W) X 4 Ft. (H)

System Specifications

  • Flow control valve (ball valve).
  • Sump tank and pump for water circulation.
  • Manometer for DP Measurement across Venturi meter
  • Caster mounted movable frame.

Experiment

  1. Study of Flow Sensors such as Rotameter, Venturi with the help of Manometer.

Note:

  1. All descriptive matter and illustrations are intended to give only a general idea of the equipment
  2. Detailed specifications may be altered at the company’s discretion without any notice.
