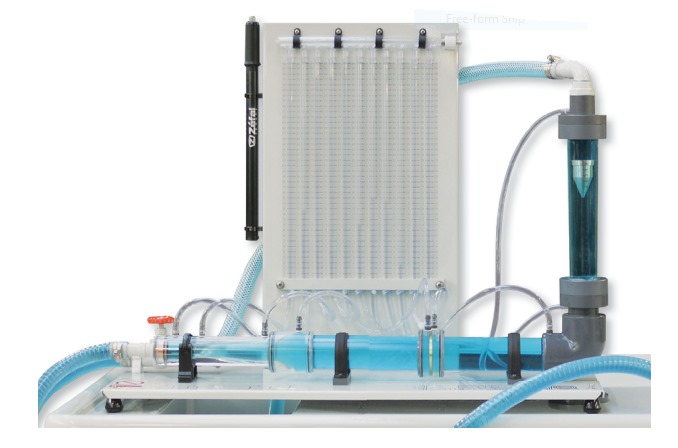

FLOW MEASUREMENT APPARATUS
Order Code: 24258242.2
Category: General Lab Equipment V
Application Calibration of Rotameter with respect to the electromagnetic flow meter, the study of different types of valves and flow through them, determination of pressure drop across different flow meters i.e. Rotameter, Venture and Orific...
SPECIFICATION
Application
-
Calibration of Rotameter with respect to the electromagnetic flow meter, the study of different types of valves and flow through them, determination of pressure drop across different flow meters i.e. Rotameter, Venture and Orifice Meter.
Specification
-
Different methods of flow rate measurement
-
Measuring instruments: orifice plate flow meter/measuring nozzle, venturi nozzle and rotameter
-
6 tube manometers to determine the pressure distribution in venturi nozzle, orifice plate flow meter and measuring nozzle
-
Measurement of the total pressure with pitot tube
-
Flow rate determined by HM 150 base module 6. Water supply via HM 150 or via laboratory supply.
Technical Data
-
Venturi nozzle: A=84…338mm2
-
Angle at the inlet: 10,5°
-
Angle at the outlet: 4°
-
Orifice plate flow meter: ø 14mm
-
Measuring nozzle: ø 18,5mm
-
Rotameter: max. 1700 L/ h
-
Measuring ranges
-
Pressure: 6x 0…390mmw
