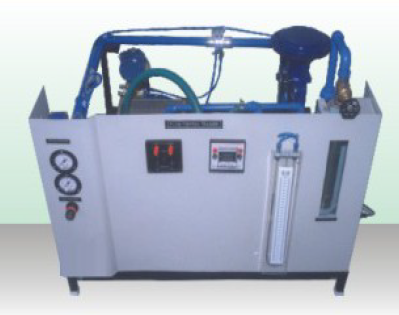

Flow Control Training System Stand Alone With Remote Distance Learning facility

Order Code: 20214003.2

Category: General Lab Equipment II

The system should cover the following training contents :- Fundamentals of control engineering based on the example of a level control system with integral control action. Open loop control response. Investigation of a controlled system with...



SPECIFICATION

  • The system should cover the following training contents :-
  • Fundamentals of control engineering based on the example of a level control system with integral control action.
  • Open loop control response.
  • Investigation of a controlled system without feedback.
  • Study effects of different controller parameters and methods on the response of the closed loop system.
  • Recording of step responses (reference variable , disturbance variable)).
  • Study of controller optimization.
  • Minimum Technical Specifications Required (like or better than):-
  • Basic unit with USB port.
  • Level-controlled tank.
  • Storage tank capacity 3500 mL.
  • Pump with flow rate 8 L/min and max head 6m.
  • Include Pressure sensor include proportional valve.
  • P, PI ,PID and switching controller software.
  • PC computer (Brand name) Core i7 , 8 GB Ram , 1 TB HDD with 18.5".
