Flip Flop Trainer

Order Code: 38712

Category: Digital Electronics Trainers

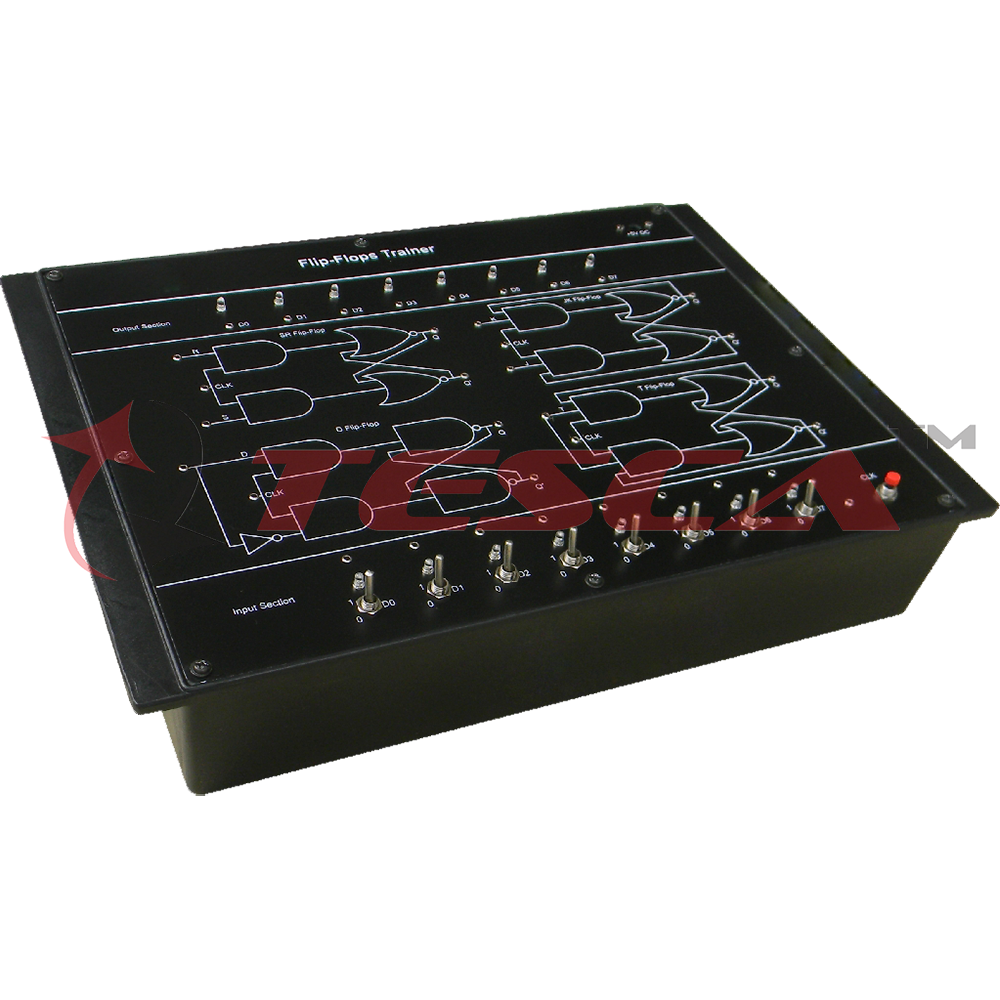

38712 The Flip-Flop Demonstrator is an elite training system for the digital laboratories. It is useful in understanding the working of digital flip-flops. 38712 describes S-R, J-K, D and T flipflops. The training system is designed in such a way ...



SPECIFICATION

38712 The Flip-Flop Demonstrator is an elite training system for the digital laboratories. It is useful in understanding the working of digital flip-flops.

38712 describes S-R, J-K, D and T flipflops. The training system is designed in such a way that for performing any experiment, students have to connect the links by patch cords, so it is easy to be familiar with the inputs and outputs of each flip-flop.

Attractive input and output sections are provided on trainer in such a manner so that multiple experiments can be performed simultaneously.

Features

  1. Exclusive and compact design
  2. Adaptable illustration of Flip-Flops
  3. +5V SMPS Adaptor provided with the trainer for power supply
  4. Designed, considering all the safety standards
  5. Online product tutorial
  6. A low cost training system

Object

  1. Study of S-R Flip-Flop and to verify its Transition table
  2. Study of J-K Flip-Flop and to verify its Transition table
  3. Study of D Flip-Flop and to verify its Transition table
  4. Study of T Flip-Flop and to verify its Transition table

Technical Specifications

Input : +5V DC

Logic levels

+5V : HIGH(Logic 1)

0V : LOW (Logic 0)

Dimensions (mm) : W 240 x D 345 x H 110

Weight : 1kg (approximate)
