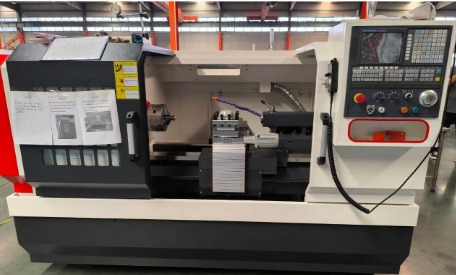

Flat Bed CNC Lathe

Order Code: 24258373.51

Category: General Lab Equipment V

Technical Specifications : Maximum swing over bed mm : Φ400 Max swing over slide mm : Φ240 Maximum turning diameter Mm : 400 Max. work piece length Mm : 550 Maximum turning Length Mm : 420 Spindle nose type : A2-6 Spindle bo...



SPECIFICATION

Technical Specifications :

  • Maximum swing over bed mm : Φ400
  • Max swing over slide mm : Φ240
  • Maximum turning diameter Mm : 400
  • Max. work piece length Mm : 550
  • Maximum turning Length Mm : 420
  • Spindle nose type : A2-6
  • Spindle bore mm : 48
  • Spindle taper : Metric 90
  • Spindle speed r/min : 150-2500
  • Spindle motor power Kw : 5.5
  • Chuck size mm : 200
  • X/Z rapid feed traverse mm/min : 6/8
  • X/Z axis servo motor torque N.m : 4/6
  • X axis travel mm : 280
  • Z axis travel mm : 550
  • Capacity of tool post : 4
  • Tool shank size mm : 20 x 20
  • Tailstock quill dia mm : 60
  • Tailstock quill travel mm : 100
  • Tailstock quill taper mm : MT-4
  • Total rated power Kw : 8/10
  • Total rated current A : 27/21
  • Machine weight Kg : 1900
  • Machine dimension (L x W x H) Mm : 2000x1600x1800
