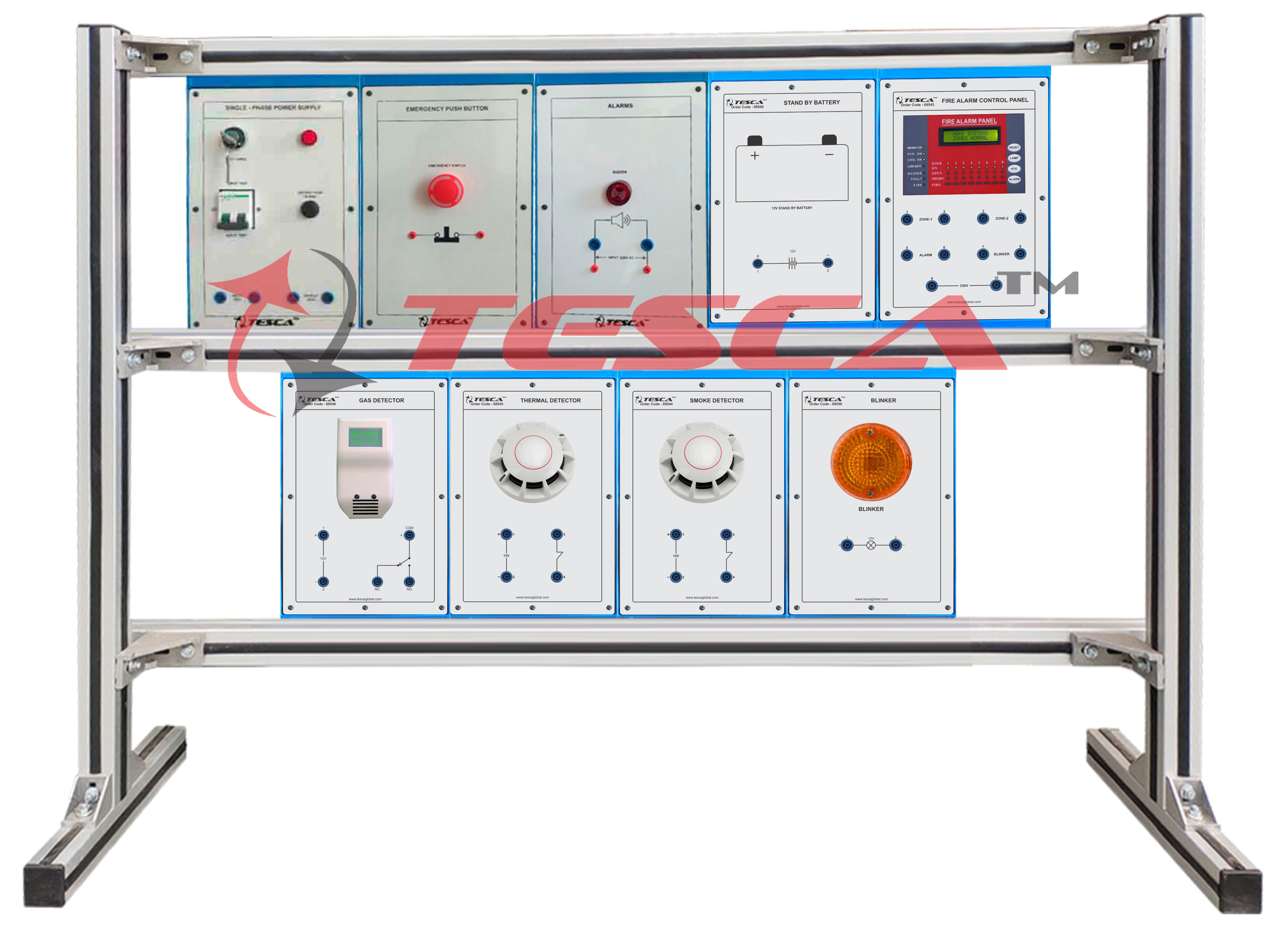

Fire Alarm Trainer System

Order Code: 46855

Category: Electrical Machine Lab

Introduction It is basic training course in Fire alarm annunciation technology. The training system consists of various types of Fire sensors like smoke detector, thermal detector, gas detector & annunciation devices and ancillary components use...



SPECIFICATION

Introduction
It is basic training course in Fire alarm annunciation technology. The training system consists of various types of Fire sensors like smoke detector, thermal detector, gas detector & annunciation devices and ancillary components used in fire alarm wiring technology.

Features

  1. Facilitates easy and safe wiring by students due to use of 4mm sturdy Shrouded banana path cords & shrouded socket arrangements.
  2. All Panels are mounted on finely painted sturdy base frame with easy Panels interchangeability.



Panels Provided

SN.

Name of Panel

Order Code

Qty.

01

Aluminum Fire Alarm Trainer Rack

69700

01

02

Single Phase Power Supply

69501

01

03

Emergency Pushbutton

69518

01

04

Alarms

69519

01

05

Fire, Intrusion and Gas Alarm Control

69543

01

06

Smoke Detector

69544

01

07

Thermal Detector

69545

01

08

Gas Detector

69546

01

09

Blinker

69550

01



Accessories Provided

SN.

Description

Qty.

01

Shrouded connecting leads 4mm 50cm Red

05

02

Shrouded connecting leads 4mm 100cm Red

05

03

Shrouded connecting leads 4mm 50cm Black

05

04

Shrouded connecting leads 4mm 100cm Black

05



List of Experiments

SN.

Name of Experiment

Panels Required

01

Smoke Detector

69501, 69518, 69519, 69543, 69544, 69550

02

Thermal Detector

69501, 69518, 69519, 69543,69545, 69550

03

Gas Detector

69501, 69518, 69519, 69543, 69546, 69550
