Fibre Optics Modulation/Demodulation Trainer

Order Code: 28525

Category: Fiber Optic Trainers

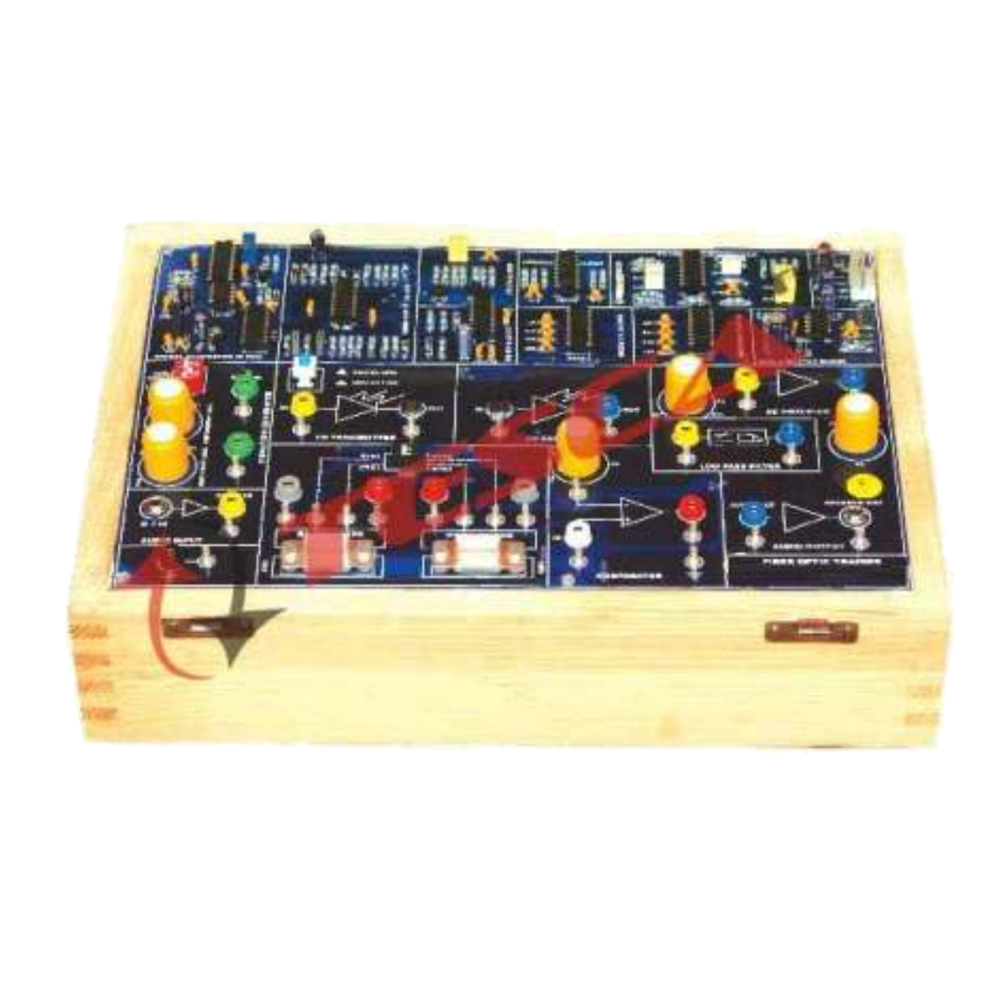

Order Code - 28525 Fibre Optics Modulation/Demodulation Trainer  28525 is a single board Fibre Optics Modulation/Demodulation  Trainer Kit to study the characteristics of Fiber using Digital and  Analog techniques. ...



SPECIFICATION

Order Code - 28525 Fibre Optics Modulation/Demodulation Trainer  28525 is a single board Fibre Optics Modulation/Demodulation  Trainer Kit to study the characteristics of Fiber using Digital and  Analog techniques. This kit also facilitates with digital and analog  Modulation & Demodulation communication techniques.

Features

  • Two Nos. Of Photo Detector.
  • On-board Sine & Square wave generator.
  • On-board 4th Order Low Pass Filer.
  • On-boad Fault Switch.
  • In-Built Power Supply.


Specifications

  • Two Transmitter Fiber Optics LED having peak  wavelength of emission 660nm & 950nm.
  • Two Receiver Fiber Optic photodetector
  • On-board Analog & Digital Drivers.
  • On-board AC Amplifiers.
  • Analog Band Width 350 Khz.
  • Digital Band Width 2.5 Khz.
  • 4th order Butter worth 3.4KHz Low Pass Filter.
  • On-board 1Hz. To 10 KHz sine wave (amplitude adjustable), Square wave (NRZ-TTL 8 Bit)
  • FO voice link using microphone & speaker
  • RS-232C PC to PC Serial link using 9 Pin Dtype.
  • Four Switched Faults for transmitter & receiver.
  • Fiber Optics Cable Connector type Standard SMA .
  • Duly polished fiber at both end for Numerical Aperture Measurement.
  • Step indexed multimode PMMA plastic cable.
  • Core Refractive Index 1.492.
  • Clad Refractive Index 1.406.
  • Numerical aperture Better than 0.5.
  • Acceptance Angle Better than 60°
  • Fiber Diameter 1000 microns.
  • Outer Diameter 2.2mm.
  • Fiber Length 1m.
  • In-Built Power Supply 5V/1.5A, ±12V/250mA.
  • Interconnections 2 mm Banana Sockets
  • Attractive Wooden enclosures of Light weightAustralian Pine Wood.
  • User's Manual with set of Patch Chords.
  • 230mm x 140mm x 80mm (L x W x H)
  • Weight 3 Kgs.
