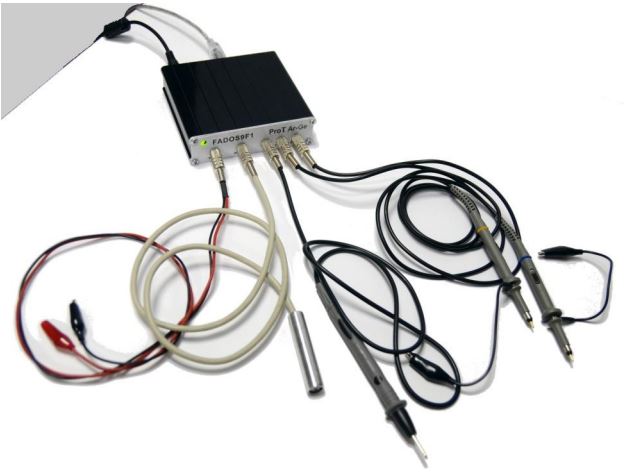

Fault Detector and Oscilloscope

Order Code: 21224568.2

Category: General Lab Equipment IV

FAULT DETECTION SPECIFICATIONS:  Test Voltages : ±1V, ±2V, ±5V, ±10V, ±15V, ±24V Test Resistance : Current Level: Low 47K?, Med1 3,5K?, Med2 700?  High 250?



SPECIFICATION

A- FAULT DETECTION SPECIFICATIONS:

  • Test Voltages : ±1V, ±2V, ±5V, ±10V, ±15V, ±24V
  • Test Resistance : Current Level: Low 47K?, Med1 3,5K?, Med2 700?

            High 250?

  • Test Frequencies : Very Low Frequency : 2 Hz
  •  Low2 Frequency : 4 Hz
  •  Low1 Frequency : 12 Hz
  •  Test Frequency : 32.5 Hz
  •  High Frequency : 355.4Hz
  • Number of Channels : 2 (Channel 1 and Channel 2)
  • Scan Mode : Manual or Automatic. Automatic selection steps of voltage, current, frequency.
  • Other Feature :
  1. Equivalent circuit diagram.
  2.  Resistor, capacitors, diodes etc measurement.
  3.  Recording data and comparing with recorded data.
  4.  3 graphs at different adjustments can be screened  simultaneously.

B- POWER – IR TEMPERATURE FEATURES:

  • DC Power Source : Adjustable between 0-16V and 20-1500mA with power output.
  • IR (Infrared) Sensor : Shows the difference between 0-120 degrees according to room temperature.

 C- PC OSCILLOSCOPE FEATURES:

  • Sampling Rate : 400 K/S
  • Input Voltage : Probe 1X: ±5 V Probe10X: ±50 V
  • Channel / ADC : 2 Channel / 12 Bit
  • Sensitivity : 2.5 mV
  • Image Rate : 0.02 mS/div….100 mS/div
  • Instant Memory : 64 Kbyte

 D- DIGITAL AND ANALOG OUTPUT:

  • Output : Channel 2
  • Output Voltage : -5V….+5V (Adjustable)
  • Frequency (Digital) : From 0.2KHz to 25KHz
  • Dimensions : 122mm L x 113mm W x 235mm H
  • Weight : 450 gram with all accessories
