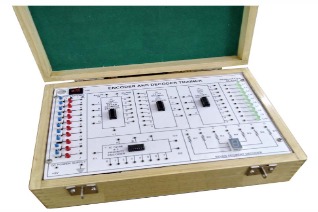

Encoder Decoder Trainer

Order Code: 24258359.15

Category: General Lab Equipment V

EXPERIMENTS 1. Study and verification of the Truth Table of an 8-to-3 line Encoder 2. Study and verification of the Truth Table of an 8-to-3 line Decoder SETUP SPECIFICATIONS • Experiment Trainer Board Contains: • Logic Level: 5V High ...



SPECIFICATION

EXPERIMENTS
1. Study and verification of the Truth Table of an 8-to-3 line Encoder
2. Study and verification of the Truth Table of an 8-to-3 line Decoder
SETUP SPECIFICATIONS
• Experiment Trainer Board Contains:
• Logic Level: 5V High (Logic 1) and 0V Low (Logic 0)
• LED Indication for High and Low levels
• Various test points
• 5V DC external adaptor
• Connecting Patch Cords
• Product Tutorial
