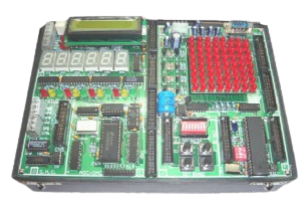

EMBEDDED CHIP SYSTEM for TVET Level, Basic to Advance

Order Code: 22235878.1

Category: General Lab Equipment I

GENERALDESCRIPTION :- Embedded Trainer has been designed by using Microchip PIC16F84 Microcontroller. This controller provides in-system as well as in circuit programming so that one may be able to write program and download directly in th...



SPECIFICATION

GENERALDESCRIPTION :-

  • Embedded Trainer has been designed by using Microchip PIC16F84 Microcontroller. This controller provides in-system as well as in circuit programming so that one may be able to write program and download directly in the controller through serial port without  removing it from the system .

SYSTEM SPECIFICATION:-

  • CPU:MicrochipPIC16F84Microcontroller
  • 16x2LCD module
  • SixSevenSegment Displays
  • 8x8 LED Matrix Display
  • EWSNStatus LED's12 Nos.
  • ADC/DACInterface
  • Four Data Switches
  • Switch Array
  • At24C16SerialEEPROM
  • StepperMotor ControllerInterface
