Telescope Magnification: Minimum 30x Field of view: Minimum 1? 30′ Objective aperture: Min. 45mm Reticle illumination: Selectable Min. 5 brightness level Minimum Focus: Minimum 1.3m or less ...

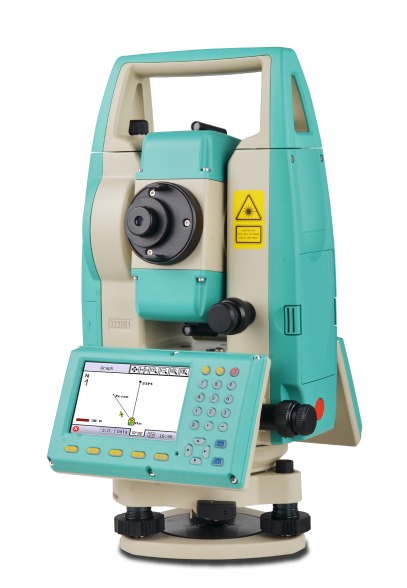

Telescope
Magnification: Minimum 30x
Field of view: Minimum 1? 30′
Objective aperture: Min. 45mm
Reticle illumination: Selectable Min. 5 brightness level
Minimum Focus: Minimum 1.3m or less
Angle Measurement
(Horizontal & Vertical) Accuracy: 1′′ (One second)
Display resolution/List count: 0.5′′/1′′
Angle unit: Degree Min Second
Compensator System: Dual axis liquid tilt sensor
Compensating range: Min. ±6′ or more
Collimation compensation: Should have collimation compensation facilities
manufacturing
Laser output: Reflector less mode Class 3R
Prism and sheet mode: Class 1
Distance Measurement Range:
Single prism: 1.3 to 6,000m
Reflector less: 0.3 to 1,000m
Distance unit: Meter/ Feet/ Inch (selectable)
Accuracy:
Prism: (1.5 +2ppm X D) mm or less
Reflector less: (2 + 2ppm X D) mm (0.3 to 200m)
Measurement mode: Fine, Course (Rapid) and Tracking.
Measuring time Fine: Maximum 0.9 Second
Rapid: Maximum 0.6 Second
Tracking: Maximum 0.4 Second
Keyboard & Display: Keyboard: Alpha-numeric key board with hard keyboard.
Display: Both face high resolution colour & touch display
Display Size: Min. 3.5inch, Transmissive TFT QVGA colour LCD with LED backlight, Touch screen,
Trigger key: Should have trigger key option to measure a distance with a single button click for work efficiency and increases productivity.
Operating Temperature: 20°C to + 60°C
Atmospheric Correction: Automatic/ Manual (By inputting temperature & pressure).
Data Storage
Internal memory: Minimum 1GB and 32 GB USB flash memory supported.
Guide light: Should have green and red guide light for night operation and operation rang should be min. 150m or more.
Laser point: Coaxial red laser using EDM beam
Data Transfer Interfaces: Serial RS-232C, USB Ver 2.0, Host (Type A) and Client (Type mini-B)
Plummet systems: Should be optical plummet.
Dust and Water proofing: IP 65 or better
Power Supply Battery Type: Li-ion rechargeable battery (Two Sets)
Battery operating time: Minimum 20 hours per battery
On-board Software Programs
License: Perpetual On-board software license
Features:
Job setting with user defined coordinate system, Resection, setting out Points / Arcs / Lines, Point Projection-Offset from the line / Offset to the line, Intersection-Line /Arcs, Feature Coding, Traverse Adjustment, Offset Angle (Hidden points), Remote distance (MLM), Remote Object Height (REM), Area Calculation and volume calculation.
Support Microsoft Bing Map satellite image backgroundContinued....
