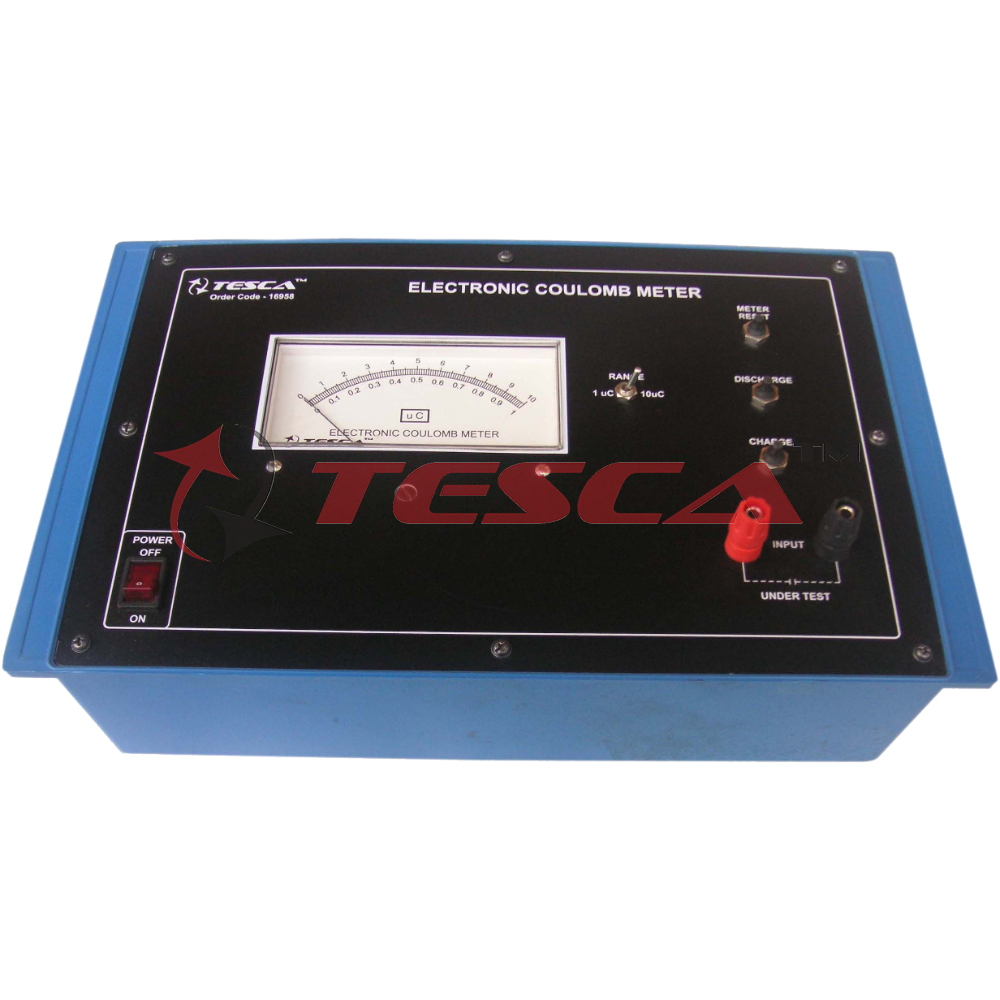

Electronic Coulomb Meter (Charge Measuring Device)

Products Categories

Electronic Coulomb Meter (Charge Measuring Device)

Order Code: 16958

Category: Misc

SPECIFICATION

Order Code - 16958 Electronic Coulomb meter is suitable for charge measurement in the range of 10nC to 10mC. It uses a large 4½" x 2¼" rectangular meter for easy reading. For good many experiments it replaces conventional Ballistic Galvanometer. While using Ballistic Galvanometer, much of the time, care and thought of the students goes to it, so that the actual measurement becomes secondary.
To overcome this, an electronic device was developed which is mechanically steady and gives a steady deflection in an output meter proportional to the charge fed into it. The electronic device is essentially, an amplifier and an integrator followed by a buffer. The integrated charge get stored in a capacitor and the voltage across the capacitor is measured using a voltmeter through a unit gain amplifier (buffer).

Features
Easy to use
High sensitivity
Steady deflection in an output meter proportional
to the charge fed into it
Solid state design consisting of an amplifier, an
integrator and a buffer
Large scale meter
Time saving
Two terminals are provided for capacitor
Discharge switch provided
Charge switch provided
Meter reset switch provided
Weight :4 Kg. (Approx)
Dimension : W 340 x H 110 x D 210
