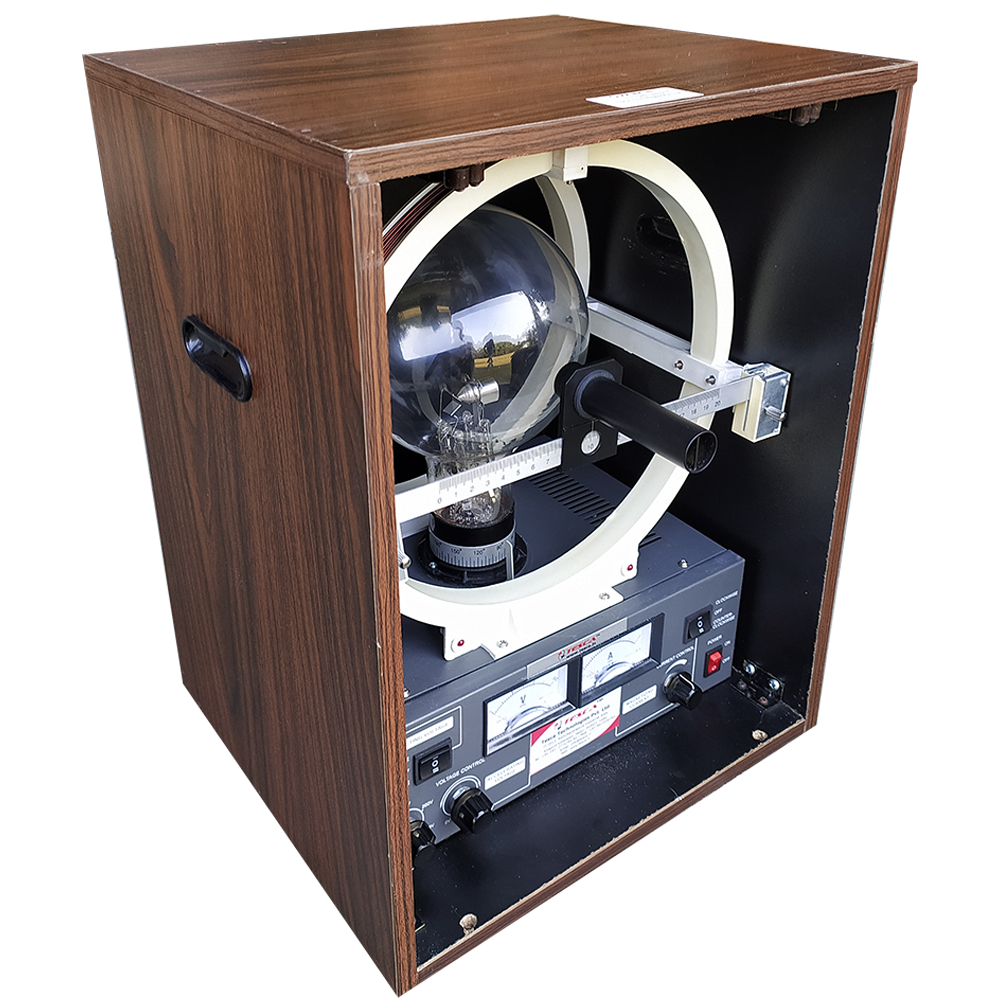

Electron charge to mass ratio system

Order Code: 21224761.19

Category: General Lab Equipment III

Should be suitable to find the charge-to-mass ratio of electrons and to reproduce J.J. Thomson's experiment. (1)Should have 90 degrees rotatable tube with an electron gun (2)Should have a 15-17 cm rad...



SPECIFICATION

Should be suitable to find the charge-to-mass ratio of electrons and to reproduce J.J. Thomson's experiment.
(1)Should have 90 degrees rotatable tube with an electron gun
(2)Should have a 15-17 cm radius Helmholtz coil to produce a magnetic field. The coil number of turns should be 120-140 turns.
(3)Maximum current should be 3 - 4 Amp. and filament voltage should be between 6 - 7 VAC
(4)Acceleration voltage between 0 - 200 V and tube diameter between 15-16 cm
(5) The electron beam should be sharp and visible
(6)Should have a fluorescent/illuminated scale behind the beam to read electron beam diameter and to reduce parallax errors.
(7)Should have a rotatable tube for the study of electrons in a magnetic field.
(8)Should have two Helmholtz coils, a helium-filled electron tube
(9)Should have deflection plates to study the effect of an electric field on moving electrons
(10)Should have tunable DC constant current power supply
(11)Should have tunable DC constant voltage power supply
(12)Include two digital multimeters and required patch cords.
(13)Coils and rotatable tubes should be mounted on a base
(14)Should provide manufacturer catalogue with the offer
