Electromagnetism Trainer Kit

Order Code: 24258313.1

Category: General Lab Equipment V

Elmholtz Coil Coil diameter: 30–50 cm Number of turns: 100–200 per coil Current rating: 5A (maximum) Magnetic field uniformity: <5% variation within central region Magnetometers (Gaussmeters) Sensitivity: ±...



SPECIFICATION

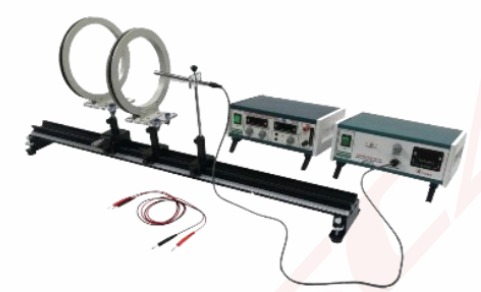

Elmholtz Coil

  • Coil diameter: 30–50 cm
  • Number of turns: 100–200 per coil
  • Current rating: 5A (maximum)
  • Magnetic field uniformity: <5% variation within central region

Magnetometers (Gaussmeters)

  • Sensitivity: ±0.01 mT or better
  • Range: ±2T
  • Digital readout with USB connectivity

Hall Effect Sensors

  • ? Frequency Range: DC to 1 MHz
  • ? Sensitivity: High sensitivity for low-field measurements
  • ? Data Logging: Integration with software for data analysis

Electromagnet

  • Magnetic field: Up to 1T
  • Pole gap: Adjustable (0–10 cm)
  • Power supply: DC with fine control, up to 10A

Induction Coil Setup

  • Coil turns: 500–1000 turns
  • Core material: Soft iron
  • Variable coil configurations for mutual induction

Hysteresis Loop Tracer

  • Magnetic field range: ±1T
  • Sample holder: Variable shapes and sizes
  • Display: Digital/graphical output

Eddy Current Apparatus

  • Disc material: Copper or aluminium
  • Rotational speed: Variable (0–1000 RPM)
  • Field generation: Adjustable electromagnet

Field Mapping Board

  • Board size: 30×30 cm
