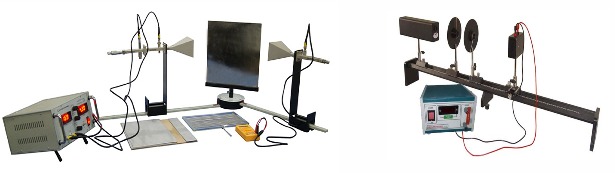

Electromagnetic Wave Propagation Trainer Kit

Order Code: 24258191.2

Category: General Lab Equipment V

Technical Specifications :  Capable of: Investigatng the behavior and characteristics of electromagnetic waves, including reflection, refraction, diffraction, and polarization Providing monochromatic and polychromatic light for studying...



SPECIFICATION

Technical Specifications :
Capable of:

  • Investigatng the behavior and characteristics of electromagnetic waves, including reflection, refraction, diffraction, and polarization
  • Providing monochromatic and polychromatic light for studying optical phenomena
  • Focusing, reflecting, and manipulating light beams to observe refraction, reflection, and focusing
  • Study of polarization effects, including Brewster’s Angle and Fresnel’s Law
  • Facilitating angular measurements for experiments involving Brewster’s Angle and Fresnel’s Law.
  • Study of reflection and transmission coefficients based on Fresnel’s equations
  • Measurement of the intensity and polarization state of reflected and transmitted light

Optical Bench with Mounts and Accessories

  • Length: At least 1.5 m with scale markings
  • Mounts: Adjustable mounts for lenses, mirrors, and polarizers
  • Material: Anti-vibration aluminum construction
  • Accessories: Sliders, holders, and clamps for secure component placement

Light Sources

  • Monochromatic Source: Laser diode (wavelengths: 532 nm for green, 650 nm for red)
  • Polychromatic Source: Halogen lamp with adjustable intensity
  • Power Output: 1 mW to 10 mW for lasers
  • Collimation: Built-in collimating lens for uniform beam

Lenses and Mirrors

  • Lenses: Convex and concave, focal lengths from 10 mm to 200 mm
  • Mirrors: Planar and concave, with high reflectivity (≥ 95%)
  • Coatings: Anti-reflection or dielectric coatings to minimize losses

Polarizers and Analyzers

  • Type: Linear polarizers, circular polarizers, and beam-splitting polarizers
  • Transmission Range: 400 nm to 700 nm (visible range)
  • Material: Polaroid film or glass-based polarizers
  • Mounts: Adjustable rotation mounts for angular alignment

Beam Splitters and Prisms

  • Beam Splitters: Cube or plate type, with 50:50 or custom splitting ratios
  • Prisms: Right-angle, equilateral, and triangular prisms
  • Coatings: Anti-reflective and dielectric coatings for specific wavelength ranges

Rotatable Stage with Angular Scale

  • Rotation Range: 0° to 360°
  • Accuracy: ±0.1° or better
  • Mounting Compatibility: Compatible with optical mounts and polarizers
  • Material: Aluminum with a smooth rotary mechanism

Dielectric Plates

  • Material: Glass, quartz, and polymers with known refractive indices
  • Dimensions: 100 mm x 100 mm x 2 mm (typical size)
  • Refractive Index Range: 1.3 to 2.5 for diverse experimental setups

Detectors and Measurement Devices

  • Photodiodes: Sensitivity range from 400 nm to 1000 nm
  • Power Meters: Accuracy of ±5% with digital readout
  • Polarization Analyzers: Measure degree of polarization and angle
