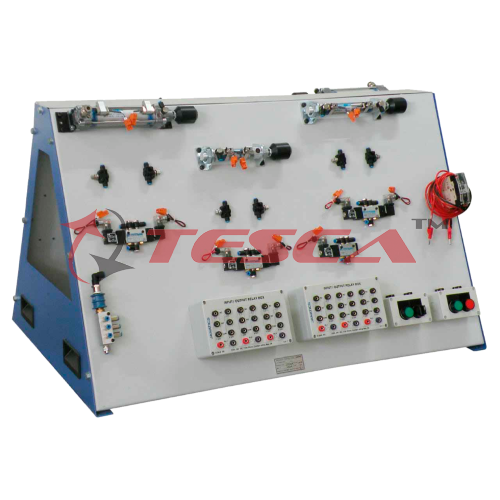

Electro-Pneumatic Training Kit

Order Code: 22235660.8

Category: General Lab Equipment I

Introduction to Pneumatics Fundamentals of Pneumatics Basic Requirement of Pneumatic Introduction to Pneumatic Components Introduction to Pneumatic symbols and circuits Simulation of Pneumatic Circuits on AutomSIM Software Trolley (Alu...



SPECIFICATION

  • Introduction to Pneumatics
  • Fundamentals of Pneumatics
  • Basic Requirement of Pneumatic
  • Introduction to Pneumatic Components
  • Introduction to Pneumatic symbols and circuits
  • Simulation of Pneumatic Circuits on AutomSIM Software
  • Trolley (Aluminum Channel) with frame & caster wheels with Brake (Load capacity: 400 Kg)
  • Compressor (50 LPM, 8 Bar, 24 Liter Tank Capacity)
  • Single acting cylinder (Stroke: 50 mm, with One Way Flow Control Valve)
  • Double acting cylinder  (Stroke: 200mm, with One Way Flow Control Valve)
  • Two Pressure Valve
  • Shuttle Valve
  • Quick Exhaust Valve
  • Three Way Two Position Knob Operated Direction Control Valve (NC Type)
  • Three Way Two Position Roller Operated Direction Control Valve (NC Type)
  • Push Button 3 Port Valve (NC Type)
  • Five Way Three Position Lever Operated Direction Control Valv
  • Five Way Three Position Double Pilot Direction Control Valve
  • Five Way Two Position Single Pilot Direction Control Valve
  • Five Way Two Position Double Pilot Direction Control Valve
  • Five Way Two Position Lever Operated Direction Control Valve
  • Five Way Two Position Single Solenoid Direction Control Valve
  • Five Way Two Position Double Solenoid Direction Control Valve
  • Three Way Two Position Time Delay Valve
  • Pneumatic motor
  • Two way Flow control valve
  • Vacuum  generator with Vacuum clamp
  • FRL Unit (Filter Regulator & Lubricator)
  • Pressure Regulator
  • Pressure Switch  with Digital set point
  • Pressure Line Manifold
  • Isolator Block
  • Electrical Control Panel 1 Set as per DIN standard
  • Proximity Sensors (Test Voltage 30 V DC max)
  • PLC with 18 Input and 12 Output with Modbus communication  and PLC  Ladder download facility
  • Mother board Computer with 21 inch LED Monitor.
