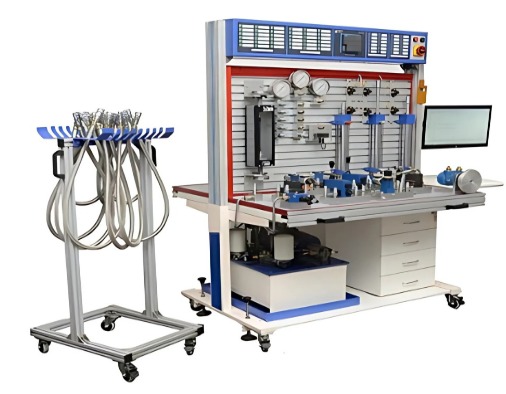

Electro Hydraulic Trainer

Order Code: 24258143.13

Category: General Lab Equipment V

Technical Specifications Hydraulic Operation Station: Material: Aluminum profile construction Experiment Table Dimensions:            Length: 1350mm            Width: 650mm ...



SPECIFICATION

Technical Specifications
Hydraulic Operation Station:

  • Material: Aluminum profile construction
  • Experiment Table Dimensions:

           Length: 1350mm

           Width: 650mm

           Height: 1580mm

  • Aluminum Panel Dimensions: 1250mm (Length) x 850mm (Width)
  • Groove Gap: 25mm
  • Aluminum Wood Cabinet: 1 piece
  • Caster with Crack Groove: 4 pieces
  • Groove Plate Insert and Extract System

Hydraulic Components:

  • Solenoid Operated Directional Valves:
  • Handle Type: 1 piece
  • Two-Coil Type: 4 pieces
  • Single-Coil Type: 2 pieces
  • Hydraulic Pressure Gauge: 3 pieces
  • Proximity Sensors: 2 piece
  • Proximity Photo Sensor: 1 piece
  • Hydraulic Cylinders (Stock Minimum 280mm): 2 pieces
  • Limit Switches: 4 pieces
  • Hydraulic Distributors:

            8 Point: 1 piece
            5 Point: 4 pieces
            T Point: 6 pieces

  • Pressure Relief Valve: 3 pieces
  • Pressure Reducing Valve: 4 pieces
  • Pressure Lock Valve: 2 pieces
  • Hydraulic Hoses:
  • 765mm: 6 pieces
  • 1160mm: 10 pieces
  • 1665mm: 2 pieces

Hydraulic Pump Station:

  • Work Power: AC 380-400V
  • AMPS: 3.0A (minimum)
  • Frequency: 50Hz
  • Safety Speed Limit: 1390 RPM (minimum)
  • Power: 1.5KW (minimum)

Hydraulic Station Control Module:

  • ELCB: 1 piece
  • Emergency Switch: 1 piece
  • Power Indicator: 1 piece
  • Starting Indicator: 1 piece
  • Hydraulic Station Switch: 1 piece
  • 4mm Safety Socket: 3 pieces
  • PLC Module (SIMATIC S7-1200 or Equivalent): 1 set

           Inputs: 24V DC, 8 pieces
          Outputs (Relay Type): 6 pieces
          Analog Inputs: 2 pieces
         Output: DC 24V
         PLC Input: DC 24V

Power Module:

  • Power Supply Positive Pole: 9 pieces (2mm socket)
  • Power Supply Negative Pole: 9 pieces (2mm socket)
  • Power Switch: 1 piece
  • 4mm Safety Socket: 3 pieces
  • Fuse: 1 piece

Relay Module:

  • DPDC Relay: 3 pieces
  • Relay Coil: 24V DC
  • Indicator: 3 pieces

Button Module:

  • DPDC Switch: 3 pieces
  • Indicator: 3 pieces
  • Operating Voltage: 24V DC

Experiment Contents:
Basic Electric Control:

  • Lights On Control
  • Lights Out Control
  • AND Logic Control
  • OR Logic Control
  • Logic Combination Control
  • Relay Self-lock Control
  • Usage of Proximity Sensor

PC Specifications:

  • Processor: Intel Core i5 (13th Generation or above)
  • RAM: 16GB
  • Storage: 1TB HDD, 512GB SSD
  • Display: 19-inch Monitor
  • Input Devices: Keyboard and Mouse

Accessories:

  • Hydraulic Oil Compressor: 1 piece
  • Connecting Jack (2mm & 4mm): 1 set
  • Power Cable: 1 piece
  • PLC to PC Communication Cable: 1 set
  • Simulation Software: Compatible with PLC
  • English Manual & CD: 1 set

Warranty & Services:

  • Warranty: 2 years with service and spare parts
  • Installation, Testing, and Commissioning: To be carried out by expert engineers
  • Training: 5-day-long training at the point of delivery for at least five participants
  • Experiment Manual: Detailed step-by-step manual for each experiment
