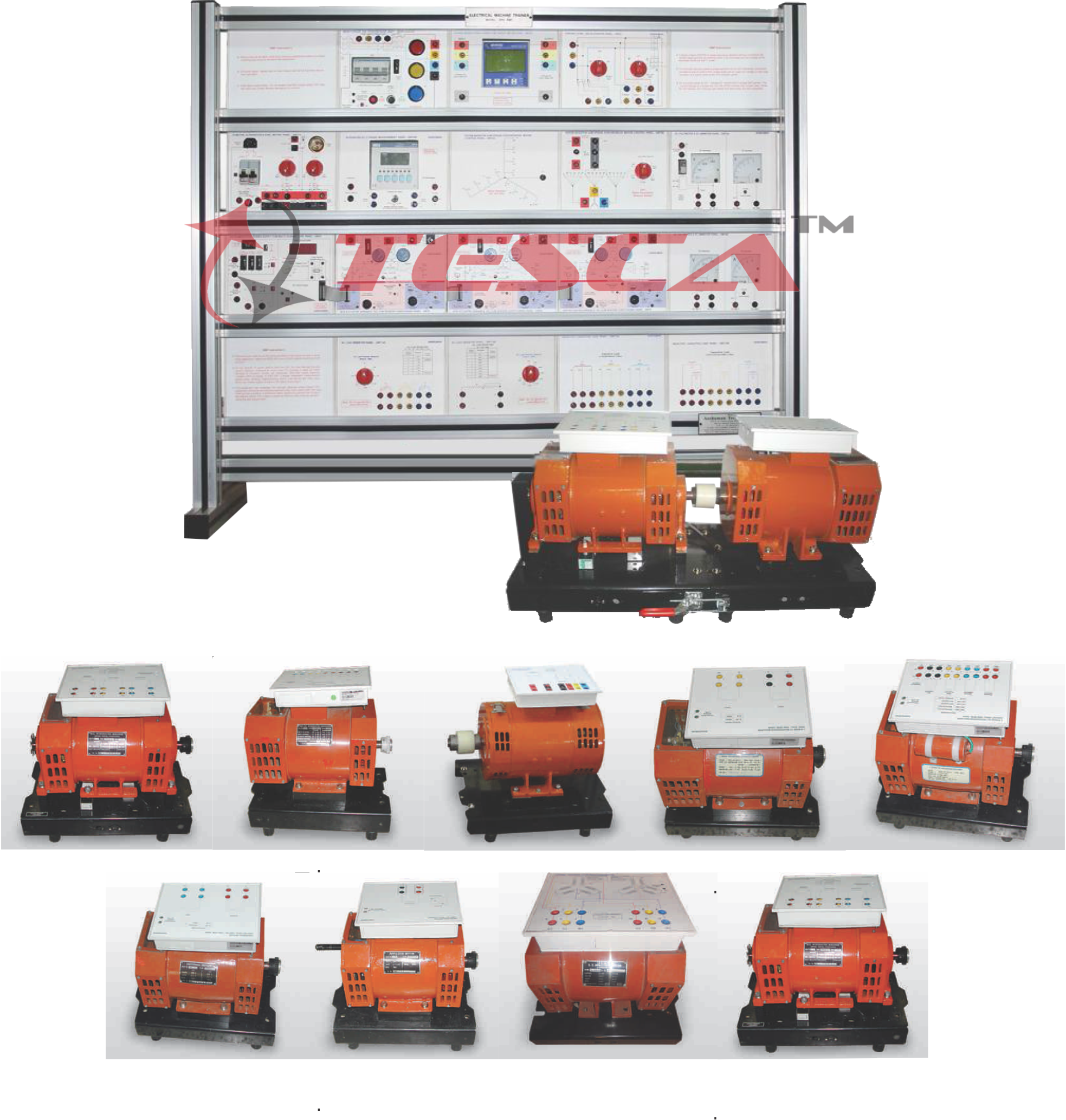

Electricity Eeducational Benches

Order Code: 22236089.1

Category: General Lab Equipment I

Facilitates  easy and  safe  wiring  by students  due  to  use  of  4mm  sturdy Shrouded banana  patch cords  & shrouded socket arrangements. All  machines are mounted on finel...



SPECIFICATION

  • Facilitates  easy and  safe  wiring  by students  due  to  use  of  4mm  sturdy Shrouded banana  patch cords  & shrouded socket arrangements.
  • All  machines are mounted on finely painted sturdy base frame with easy machine interchangeability. Use of  gear coupling facilitates screwless coupling. interchangeability. Use of gear coupling facilitates screwless  coupling.
  • With due emphasis on student safety machines operate upto 300W power levels  and  upto 1500 RPM,  without compromising on didactic use. Able to draw all graphs. Contact factory for 3 HP EMT Trainer.
  • Trunnion mounted DC Integrated machine is used as Dynamometer for loading other machines (Motors/ generators both); unlike magnetic powder  brake  or  eddy  current  brake which can load only coupled Motors and not generators, with facility to measure shaft power using electronic torque / speed Measurement



Panels Provided

  • Aluminum Machine trainer Rack
  • Input 3 phase DOL Starter panel
  • Multifunction Meter (Single Phase/Three Phase AC 50Hz) - Qty.2
  • FWD/REV, Star-Delta starter panel
  • Rotor Resistor Cum 3Phase Synchronous Motor Control
  • 1 Phase Motor, Alternator & Sync. Motor
  • DC voltmeter & Ammeter and Torque Measurement Meter - Qty.2
  • Variable DC Power Supply - Qty.2
  • Input Single Phase DOL Starter Panel AC DC Fix / Variable Supply - Qty.2
  • AC Load Resistor
  • DC Load Resistor
  • AC Load Inductor
  • Capacitive Load
  • Lamp Load
  • Synchroscope / 3 Phase Alternator Synchronizer
  • Extension Board
  • Motors Provided
  • DC Integrated (Trunion Mounted) Motor - Qty.2
  • 3 Phase AC Integrated Motor - Qty.2
  • 3 Phase Salient Pole Alternator
  • 1 Phase. Synchronous Motor
  • 1 Phase AC Integrated Motor
  • Universal Motor
  • DC Integrated (Foot mounted) Motor
  • 1 Phase AC Integrated Motor with loading arrangement
  • 3 Phase AC Integrated Motor with loading arrangement
  • 3 Phase Squirrel Cage Induction Motor with loading arrangement
  • Repulsion Motor with loading arrangement
