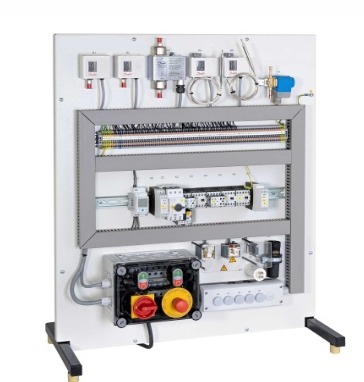

Electrical installation in refrigeration systems
Order Code: 24258098.67
Category: General Lab Equipment V
Electrical installation in refrigeration systems Design and wiring of typical electrical circuits from refrigeration Features design and wiring of typical electrical circuits from refrigeration investigation of important electrical ...
SPECIFICATION
Electrical installation in refrigeration systems Design and wiring of typical electrical circuits from refrigeration
Features
-
design and wiring of typical electrical circuits from refrigeration
-
investigation of important electrical components from refrigeration
-
design and investigation of a safety chain
Specification
-
experimental unit from the practical series for the training of mechatronics engineers for refrigeration
-
design and investigation of circuits with electrical components from refrigeration
-
electrical components mounted clearly visible and connected on terminal blocks
-
1 set of cables with wire end ferrules for wiring electrical components on terminal blocks
-
3 pressure switches, 2 thermostats, 1 solenoid valve, 1 timer, 4 circuit breakers, 5 contactors, 3 relays, 2 capacitors
-
5 lamps to simulate consumers
Technical data
3 pressure switches
-
high pressure: 8...32bar
-
low pressure: -0,9...7bar
-
differential pressure: 0,3...4,5bar
2 thermostats: -5...20°C
1 timer
-
2 switchable outputs
-
switching time: 1...60min
4 circuit breakers
-
bimetallic circuit breaker
-
thermistor circuit breaker
-
circuit breaker with start-up current limiter
-
adjustable protection relay
5 contactors
-
2x: 3 NO, 1 NC
-
3x: 4 NO
3 relays
-
electromagnetic start-up relay
-
PTC start-up relay
-
time relay Start-up and operating capacitor: 15µF, 80µF400V, 50Hz, 3 phases
