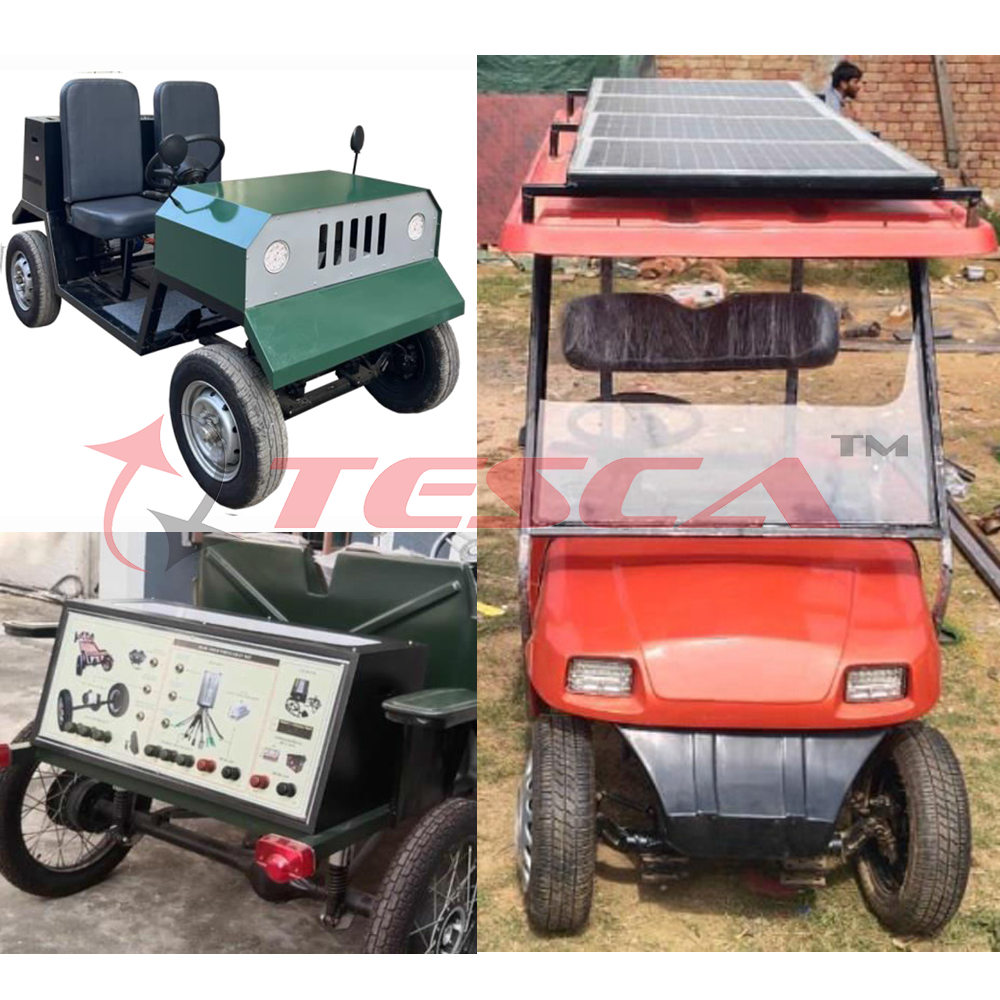

Four Wheeler Electric Vehicle System Consists Of  Mid-drive Motor & Drive

• One number of 60V/1.2KW, 30 PMSM Motor with controller

BLDC Motor (Optional-1)

Switched Reluctance Motor (Optional-2)

• any motor from above optional-1 & 2 can be interchangeable with 30 PMSM Motor.
• Suitable differential gear arrangements (10:1) to fix the above motors- any one at a time

Battery & Charger

• One number of 60V/2.5KW Lithium ion battery with smart BMS
• Bluetooth connectivity with mobile app for BMS
• RS485/CAN Communications for BMS Output
• Suitable charger for battery charging purpose
• Charging time 4-5Hours

Vehicle Dimensions

• 4 feet (W), 7 feet (L) +/-10% Variations
• Ground Clearance-375MM
• Curve Weight-200kg

General Features

• Speed 30-35KMPH
• Millage range-30km Per charge

Digital indicator with RS485 Output (Optional-3)

• PLC/Other type controller with 7 inch HMI provided to indicate -Motor speed in RPM, Vehicle KMPH, Battery current, Voltage & Energy etc Battery BMS o/p with RS485, Blue tooth output
• Tire pressure sensor with Display only
• Speed sensor with RS485
• Vibration sensor interface with RS485
• Temperature sensor for battery charger
• Temperature sensor for Motor
• Temperature sensor for Drive
• Temperature sensor for solar panel

Special Features

• Provision to interface external PWM Controller ( dpsace /opal rt/RTGUI FPGA) & IGBT module for Motor control

Iot -Remote Monitoring Software (Optional-4)

Solar Roof for Hybrid Energy System for Charging (Optional-5)

• Solar Panel fixed on the roof of Vehicle

Solar Panel Specifications

• Type: Mono crystalline solar PV
• Each Panel Power: 75W
• Total Number of Panel: 4
• Connection; All 4 panel connected in series
• Per panel Voltage (Voc): 24V
• Per panel Voltage (Vmp): 18V
• Type of Cell: Polycrystalline Solar Panel
• Total power of Roof top panel: 72V, 300W
• Make; Kaumo solar- (Made in India)

Solar Battery Charger

• Solar Battery charger for lithium Battery
• Input from solar panel 72V, 300W
• Output - suitable for 48 or 60v lithium battery
• MOSFET-based Charger (PWM/MPPT) circuit
• All are mounted on a nice powder-coated cabinet with MCB & ON/OFF switch
