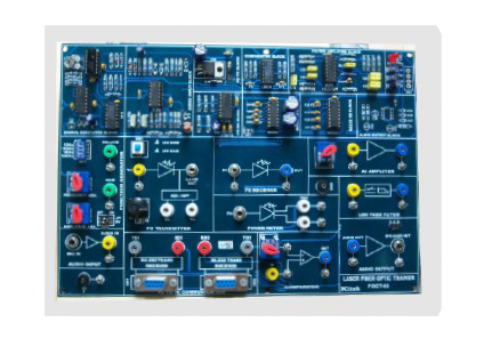

Educational System Of Fundamental Fibers

Order Code: 21225106.3

Category: General Lab Equipment I

To be a table type system, specially designed, for the education of both students and Electronic / technical-engineers, on the fundamental principles of optical fibers (OI). To be an introductory level system, of the basic principles, on the opt...



SPECIFICATION

  • To be a table type system, specially designed, for the education of both students and Electronic / technical-engineers, on the fundamental principles of optical fibers (OI).
  • To be an introductory level system, of the basic principles, on the optical fibers, of one or more functional processes, through a series of laboratory exercises, at least, in the following
  • In the way light is connected, to an O.I., from a source.
  • Measurements of all the characteristics of laser sources
  • Measurements of reflection and refraction characteristics through the use of lenses.
  • In the way of measuring losses.
  • In the way and causes of attenuation of light in O.I.
  • The mentioned, above educational systems OI, to be
  • Be accompanied by the corresponding functional components (conventional connectors) FC and SC and each system must be accompanied by the following components:
  • A jumper assemblies - with jumper assemblies, with fasteners at both ends.
  • A jumper assemblies - with jumper assemblies, with fasteners at both ends.
  • An array of O.I. with sources at three different wavelengths and corresponding detectors, an optical signal multiplexer of different wavelengths through the same fiber.
  • The system must have integrated:
  • FPGA for digital input / output control The system must have integrated:
  • FPGA for digital input / output control
  • (a) integrated signal generator and oscilloscope functions
  • b) built-in optical power meter with lcd display indications (c) integrated signal generator and oscilloscope functions
  • d) built-in optical power meter with lcd display indications
  • Observation of system signals on a PC screen through accompanying software
  • Each system must be accompanied by a manual of laboratory processes and a corresponding instructional-instructional video.
