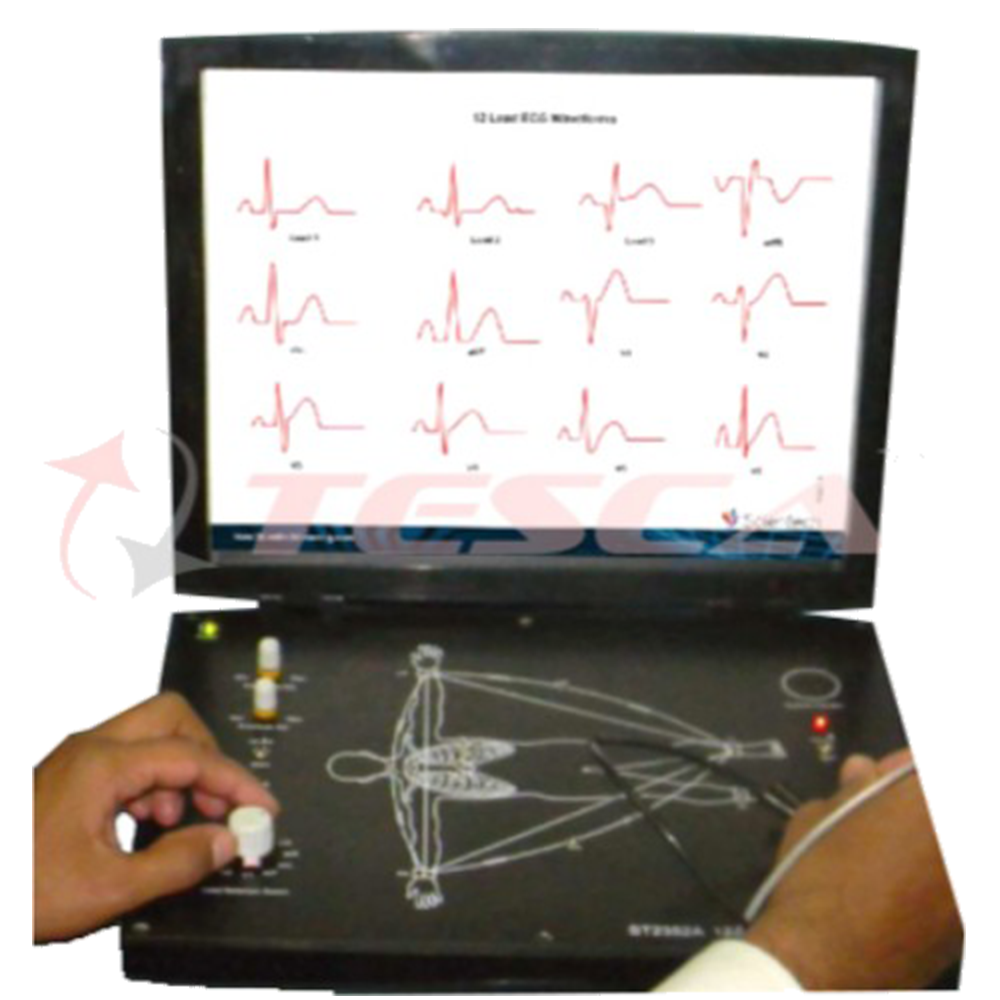

ECG Simulator Trainer

Order Code: 71802

Category: Biomedical Trainers

An Electrocardiogram (ECG or EKG, abbreviated from the German Elektrokardiogramm) is a graphic produced by an electrocardiograph, which records the electrical activity of the heart over time. Analysis of the various waves and normal ve...



SPECIFICATION

An Electrocardiogram (ECG or EKG, abbreviated from the German Elektrokardiogramm) is a graphic produced by an electrocardiograph, which records the electrical activity of the heart over time. Analysis of the various waves and normal vectors of depolarization and repolarization yields important diagnostic information.
It is the gold standard for the diagnosis of cardiac arrhythmias It guides therapy and risk stratification for patients with suspected acute infraction. It helps detect electrolyte disturbances (e.g. Hyperkalemia and hypokalemia) It allows for the detection of conduction abnormalities (e.g. right and left bundle branch  block) 12 Lead ECG Simulator provides a quick, accurate measurement of all 12 leads including both Unipolar and Bipolar configurations for verifying the performance of real time ECG monitoring, heart-rate monitoring. Illustrates the fundamentals of standard limbs (unipolar and bipolar) and chest leads interpretation and rhythm recognition in an easy-to-use manner. ECG rhythms produced can be changed in
specific boundaries (heart-rate, amplitude).
Also demonstrates ECG observation comprising P, Q, R, S, T, U (U wave is only for lead II) waves in different leads arrangements. This trainer is compatible with Heart-rate Monitor cum ECG Trainer 71802 which receives the ECG signals generated by and measures the heart-rate as number of heartbeats per minute. The
abnormalities occurring in human cardiovascular system like Tachycardia (faster heartrate) and Bradycardia (slower heart-rate) can also be studied.
Capable to illustrate all 12 leads of ECG simultaneously at a single point, where all waveforms are adjacently placed to help you understand ECG graph Interpretation.

Features
Provides amplified ECG output with P, Q, R, S, T, U waves.
Compatible with Heart-rate monitor cum ECG Trainer 71801
Provides in-depth study of Standard Unipolar and Bipolar Leads Configuration for ECG measurement Variable Heart rate generation from 30-300 heartbeats/minute Variable ECG amplitude 200mV – 4V DC
Every Systole indication by LED (visible) and audible (Buzzer) sound controls

Technical Specifications
Generating Range : 30-300 heartbeats/minute
ECG Amplitude Range : 200mV- 4V DC.
Heartbeat indication : Both visible (LED) and Audible (Buzzer) controls
Bipolar Leads : Lead I, Lead II, Lead III.
Unipolar Leads : avR, avL, avF, Chest leads (V1-V6)
Power supply : 230V 10%, 50Hz
Separate output channels Left arm (LA), Right arm (RA), Left leg (LL), Right leg (RL) and Chest Leads (V1-V6) for representing Standard Limb and chest leads configurations. A separate point indicated (12 Lead) to view the all 12 Lead standard ECG waveforms simultaneously.
