Earth Leakage Relay Trainer
Order Code: 24258364.4
Category: General Lab Equipment V

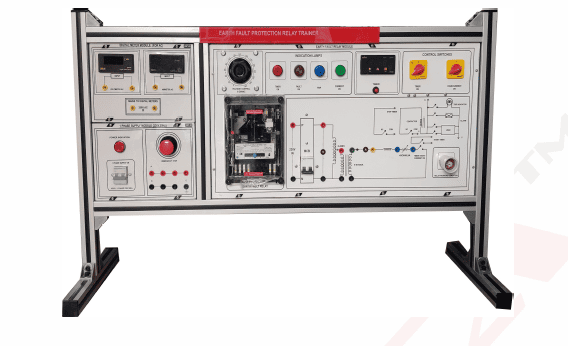

Overview The Earth Leakage Relay Training Module is purpose-built for hands-on training and testing of earth leakage protection systems in educational and laboratory settings. It features pre-wired connections, an integrated Zero-Phase Current Tra...
SPECIFICATION
Overview
The Earth Leakage Relay Training Module is purpose-built for hands-on training and testing of earth leakage protection systems in educational and laboratory settings. It features pre-wired connections, an integrated Zero-Phase Current Transformer (ZCT) for accurate fault detection, and front panel-mounted banana sockets for safe and convenient operation.
This module is ideal for technical institutions, vocational training centers, and laboratories aiming to teach protective relay concepts with real-world application.
Key Features
-
Practical Training Design:
-
Includes a pre-wired earth leakage relay for real-time testing and demonstration.
-
-
Integrated Zero-Phase CT:
-
Built-in ZCT ensures precise detection of leakage currents.
-
-
Safe & Accessible Connectivity:
-
High-quality banana sockets rated at 32A for current injection and 10A for contact outputs.
-
Front-panel layout provides easy terminal access for students and instructors.
-
-
Durable & Portable Construction:
-
Enclosed in a sturdy metal-clad bracket with a built-in carry handle for mobility and long-term use.
-
Technical Specifications
| Parameter | Specification |
|---|---|
| AC Supply Input | 230V AC |
| Contact Output | Included |
| Mounting | Metal-clad bracket with handle |
| Zero-Phase CT (ZCT) | Included – for accurate earth leakage current detection |
| Banana Sockets | 32A (current injection), 10A (contact connections) |
Applications
-
Training in earth leakage protection systems
-
Electrical safety and protection relay experiments
-
Vocational and technical education programs
-
Use in engineering laboratories and training centers
