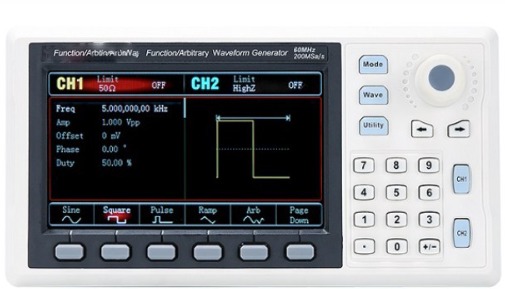

Dual Channels Function generator and arbitrary wave form generator
Order Code: 24258334.3
Category: General Lab Equipment V
INTRODUCTION:- Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary Output frequency range: 1μHz-60MHz High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz Two equivalent-performance channels 4.3 inche...
SPECIFICATION
INTRODUCTION:-
- Output waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
- Output frequency range: 1μHz-60MHz
- High-accuracy, broad-band 6 bit frequency counter, range: 100mHz~100MHz
- Two equivalent-performance channels
- 4.3 inches TFT LCD
Channel: 2
- Max frequency: 60MHz
- Sampling rate: 200MS/s
- Vertical resolution: 14 bits
TECHNICAL SPECIFICATIONS:-
- Type of Product: Function/Arbitrary Waveform Generator
- Max frequency: 60MHz
- Sampling rate: 200MS/s
- Vertical resolution: 14 bits
- Waveforms: Sine, square, pulse, ramp, noise, DC, arbitrary
- Sweep modes: Logarithmic, linear
- Frequency Characteristics
- Sine: 1MuHz~60MHz
- Square: 1MuHz~20MHz
- Ramp: 1MuHz~400kHz
- Pulse: 1MuHz~20MHz
- Arbitrary: 1MuHz~10MHz
- Resolution: 1MuHz
- Accuracy: Within 90 days +- 50ppm, Within 1 year +- 100ppm
- 18DegC~28DegC
Output Characteristics
- Impedance: 50Ohm/High Z
- Amplitude range: 1mVpp~10Vpp (50Ohm); 2mVpp~20Vpp (high Z)
- DC offset range (AC+DC): +-5V (50Ohm); +-10V (high Z)
- Amplitude resolution: 1mV
- Display: 4.3InchTFT LCD
