Dropwise & Filmwise Condensation Apparatus

Order Code: 14027

Category: Heat Transfer Lab

Introduction: This setup is designed for determining heat transfer co-efficient of two types of condensation and for visualization of these processes. It consists of a vertical frame. Condensation tubes are fitted inside compact glass cylinder. St...



SPECIFICATION

Introduction:

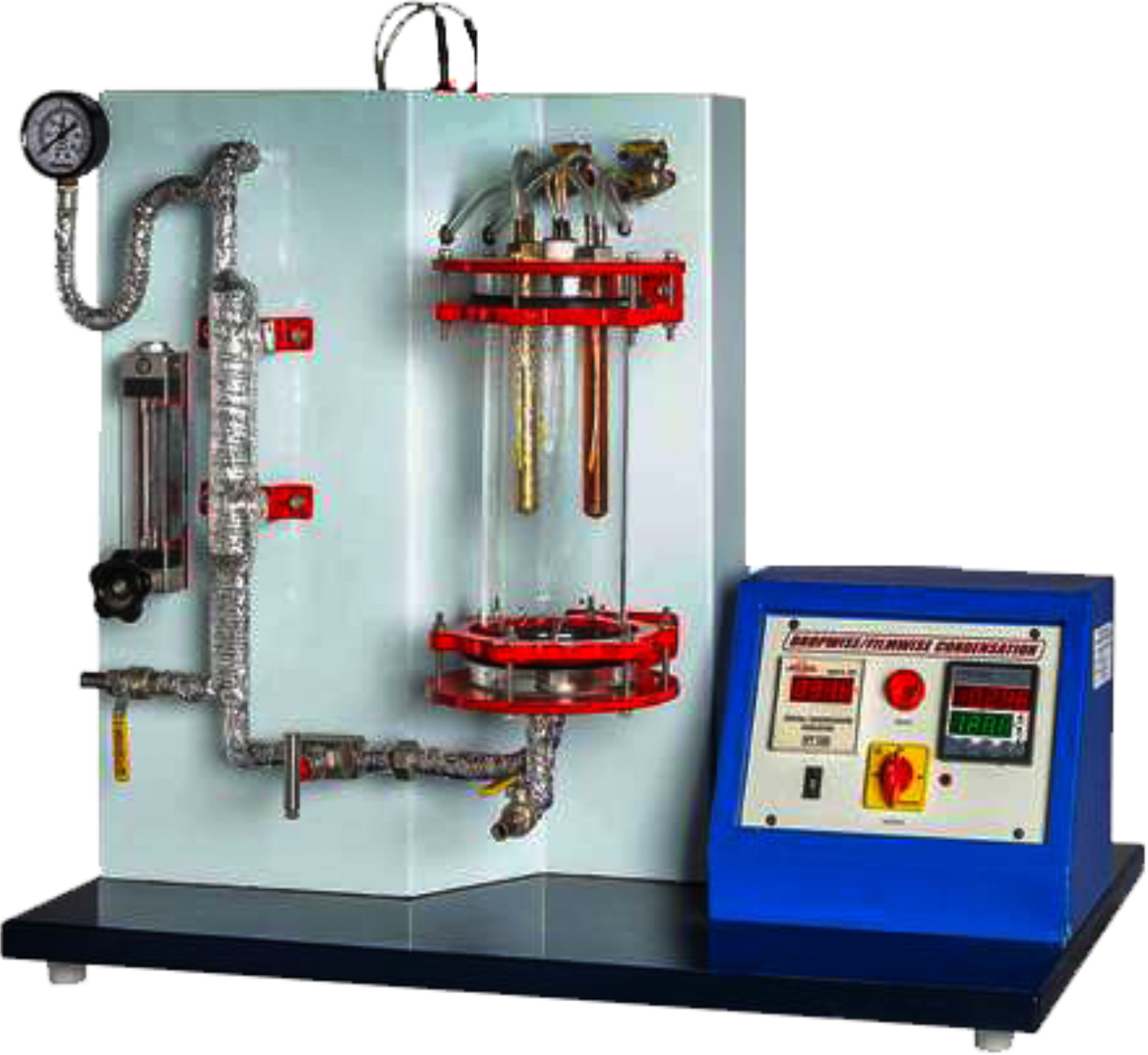

This setup is designed for determining heat transfer co-efficient of two types of condensation and for visualization of these processes. It consists of a vertical frame. Condensation tubes are fitted inside compact glass cylinder. Steam generator is fitted at the backside of the cylinder. Steam comes directly from generator to the cylinder. Two valves are fitted to control flow rate of water in individual tubes. Digital Temperature Indicator monitors the temperatures.

Specifications:

team Generator : 8 Ltrs. (Approx.) made of Stainless steel with 1.5 kW heater.

Insulated with ceramic wool and cladded by aluminum foil.

Pressure Gauge : Bourdon type.

Copper tubes (2 Nos.): one with natural finish and other nickel polished.

Diameter: 19 mm (Approx.)

Length: 170 mm (Approx.)

Water Flow measurement: Rotameter.

Condensate Measurement : Measuring Cylinder & Stopwatch

Control valves: one 0 each for Steam

Cooling water & Drain.Control panel comprising of :Digital Temp. Controller: 0- 199.9 C (For 0 Steam Generator)

Digital Temp. Indicator: 0-199.9 C, with multi-channel switch.

Temperature Sensors : RTD PT-100 type with Standard make On/Off switch, Mains Indicator etc.
