Drone Learning Kit

Order Code: 24258369.5.16

Category: General Lab Equipment V

Overview The F550 Quadcopter Frame Kit is a durable and high-performance frame built from glass fiber and polyamide nylon. It includes an APM 2.8 flight controller, a 7M GPS module, and essential components such as 2212 920KV motors, 30A Simo...



SPECIFICATION

Overview

  • The F550 Quadcopter Frame Kit is a durable and high-performance frame built from glass fiber and polyamide nylon.
  • It includes an APM 2.8 flight controller, a 7M GPS module, and essential components such as 2212 920KV motors, 30A SimonK ESCs, and the Flysky FS-i6 transmitter.
  • This kit provides a stable and efficient platform for RC drone enthusiasts and professionals.

Key Features

  • Robust Construction: High-quality glass fiber and polyamide nylon frame for durability.
  • Integrated PCB Board: Allows direct ESC soldering for a cleaner build.
  • Optimized Orientation: Colored arms for easy flight direction identification.
  • Easy Assembly: Pre-threaded brass sleeves and large mounting tabs simplify setup.
  • Advanced APM 2.8 Flight Controller: Improved stability and control with integrated power management.

Frame Specifications

  • Width : 450mm
  • Height : 55mm
  • Weight (w/o electronics) : 280g
  • Wheelbase : 450mm (17.7 in)
  • Motor Mount Bolt Holes : 16/19mm
  • Gross Weight : 395g
  • Net Weight : 272g

APM 2.8 Flight Controller Specifications

  • Processor : Atmel ATMEGA2560
  • Power Supply : LP2985-3.3V Regulator (Max 16V input)
  • Compass Options : Built-in or external (jumper selection)
  • Interfaces : MUX (UART0, UART2, I2C, OSD)
  • OSD Compatibility : Yes (default output)
  • Additional Features : 47uF tantalum capacitor for stability

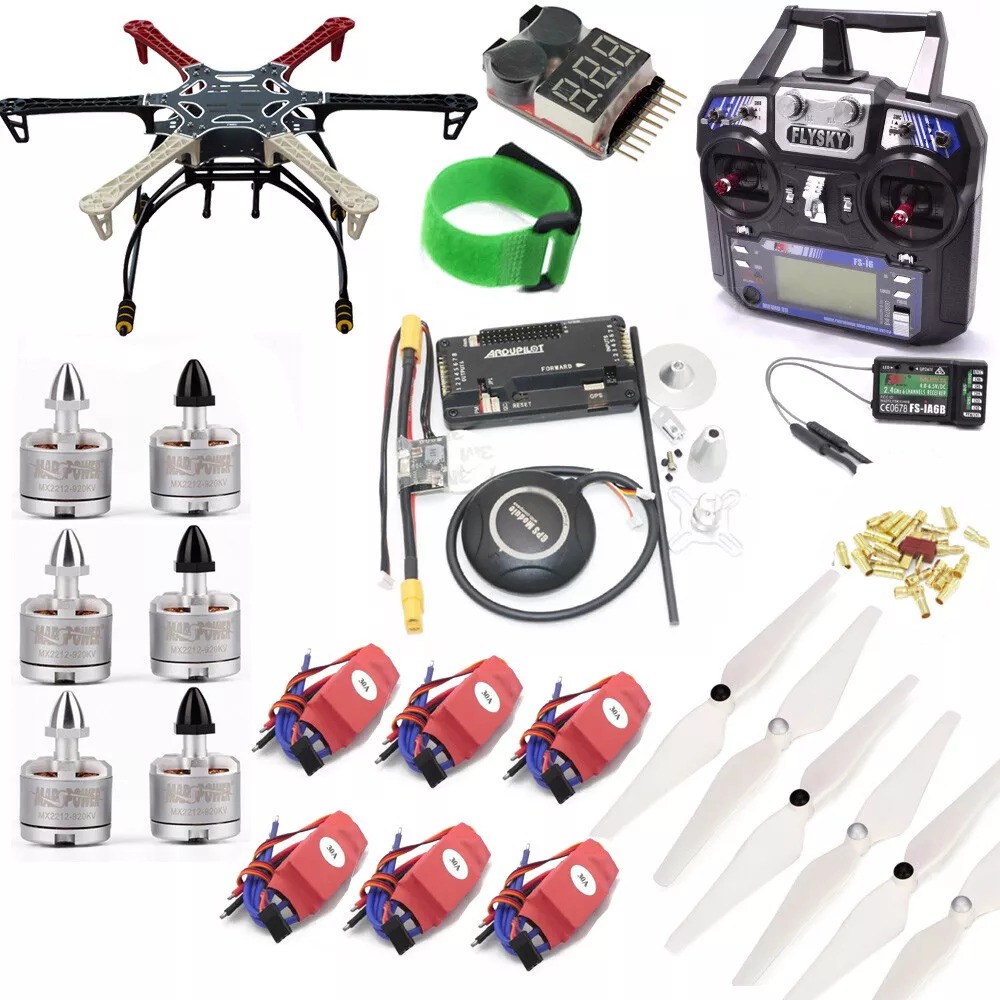

Included Components

  • APM 2.8 Flight Controller (with DF13-5P GPS interface)
  • 7M GPS Module (high-precision positioning)
  • 2212 920KV Brushless Motors (CW & CCW)
  • 30A SimonK ESCs (optimized for fast response)
  • Flysky FS-i6 Transmitter (reliable 2.4GHz control)
