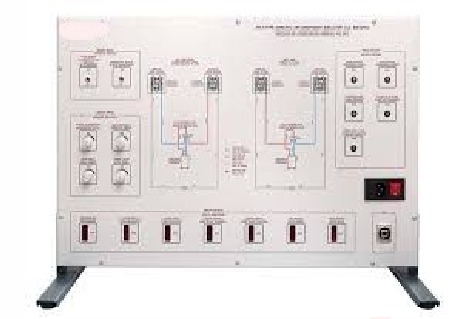

DOMESTIC AIR-CONDITIONING SYSTEM SIMULATOR.
Features

• modern air conditioning unit with heat pump function: cooling and heating,- six different operating modes.

• Learning objectives/ experiments,- design and operation of a split system air conditioner,- 6 operating modes,-- cooling,--dehumidifying (slight cooling),-- heating,-- ventilation (only the fan of the inner unit),-- automatic (operating mode suitable for the room temperature),-- test of cooling function,- 3  additional functions,-- "sleep" (switch-off after several hours),-- "swing" (air outlet lamella position),,- timer for switching on and off,- remote control functions.

Specification

• trainer from the practical series for the training of mechatronics engineers for refrigeration

• design and operation of a commercial split system air conditioner

• illustration of the split principle using a dividing wall

• 6 different operating modes: heating, cooling, dehumidifying, ventilation, automatic, test

• 3 additional functions configurable via remote control: sleep, swing, timer

• 2 refrigerant manometers indicate the low and high pressure of the compressor

• refrigerant R32, GWP: 675

• battery operated remote control.

• Technical data: Split system air conditioner,- power consumption: approx. 1,2kW at 24/35°C,- cooling capacity: approx. 3,5kW at 24/35°C,- max. volumetric air flow rate (inner unit): approx. 420m3/h,- dehumidification (inner unit): approx. 0,8L/h,-timer: 24h. Refrigerant,- R32,- GWP: 675,- filling volume: 700g,- CO2-equivalent: 0,5t. Measuring ranges,- pressure: 2x -1...40bar,230V, 50Hz, 1 phase
