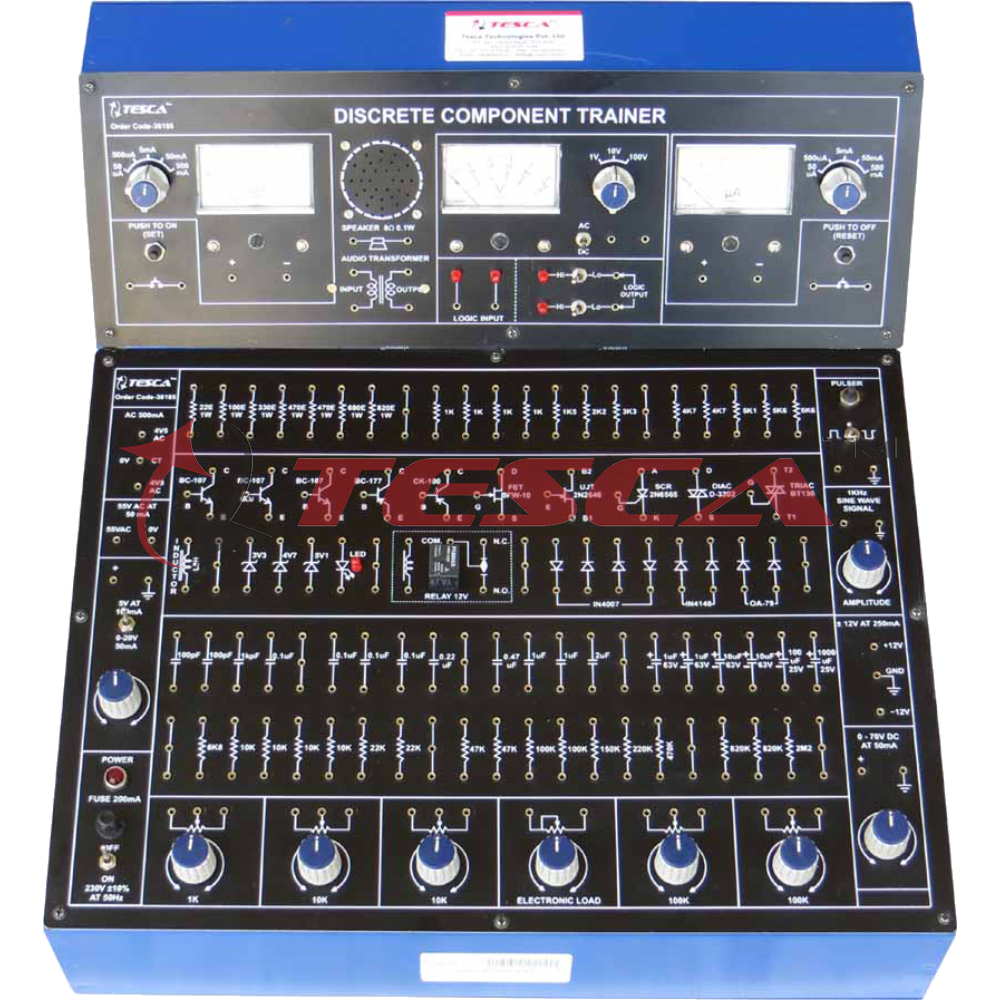

Discrete Component Trainer with power supply, oscillator and 3 multi range meters

Order Code: 36185

Category: Analog Electronics Trainers

Experimental Training Board has been designed specifically for the study of Discrete Electronic Components. It contains a wide selection of discrete components and A.C. & D.C. Power Supplies. The capabilities of this trainer extend far beyon...



SPECIFICATION

Experimental Training Board has been designed specifically for the study of Discrete Electronic Components. It contains a wide selection of discrete components and A.C. & D.C. Power Supplies. The capabilities of this trainer extend far beyond the experiments described. Although only a finite number of experiments have been described yet other circuits as per individuals requirements can also be designed using the available components and power supplies.
Practical experience on this board carries great educative value for Science and Engineering Students.

Features:
The board consists of the following built in parts :

  1. 4V5-0-4V5 A.C. at 500 mA, Power Supply.
  2. 0-5VA.C. at 50mA, Power Supply.
  3. 0-70V D.C. at 50 mA, continuously variable Power Supply.
  4. ± 12V D.C. at 250 mA, IC regulated and short circuit protected Power Supply.
  5. 0-20V D.C. at 50 mA, IC Regulated Power Supply.
  6. 5V D.C. at 100mA, IC Regulated Power Supply.
  7. A.C. / D.C. Voltmeter, 65mm rectangular dial, with switch selectable ranges of 1V, 10V and 100V.
  8. Two D.C. Ammeters, 65mm rectangular dial, with switch selectable ranges of 50 mA/500mA/5mA /50mA/500mA.
  9. Pulser with Dual Polarity, selectable output.
  10. 1 KHz Sine wave source with variable output level.
  11. LEDs for visual indication of Input & Output status.
  12. Speaker, LED, 8 diodes, 5 Zener diodes, Diac, SCR, Triac, 2 FET, UJT, 7 Transistors, 1 matched transistor pair, 67 resistors, 27 capacitors, 6 potentiometers, Electronic Load, indicator, Audio Transformer.
  13. 12 V, OEN Relay with one change over contacts rated at 6 Amp. for resistive and 3 Amp. for inductive Load at 230V.
  14. Mains ON/OFF switch, fuse and Neon Indicator are provided.
  15. The unit is operative on 230V ±10% at 50Hz A.C. Mains.
  16. Adequate no. of patch cords stackable from rear both ends 2mm spring loaded plug length ½ metre.
  17. Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections & observation of waveforms.
  18. Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References.


Other Apparatus Required:

  1. Sine Square Wave Oscillator
  2. Cathode Ray Oscilloscope 20MHz
