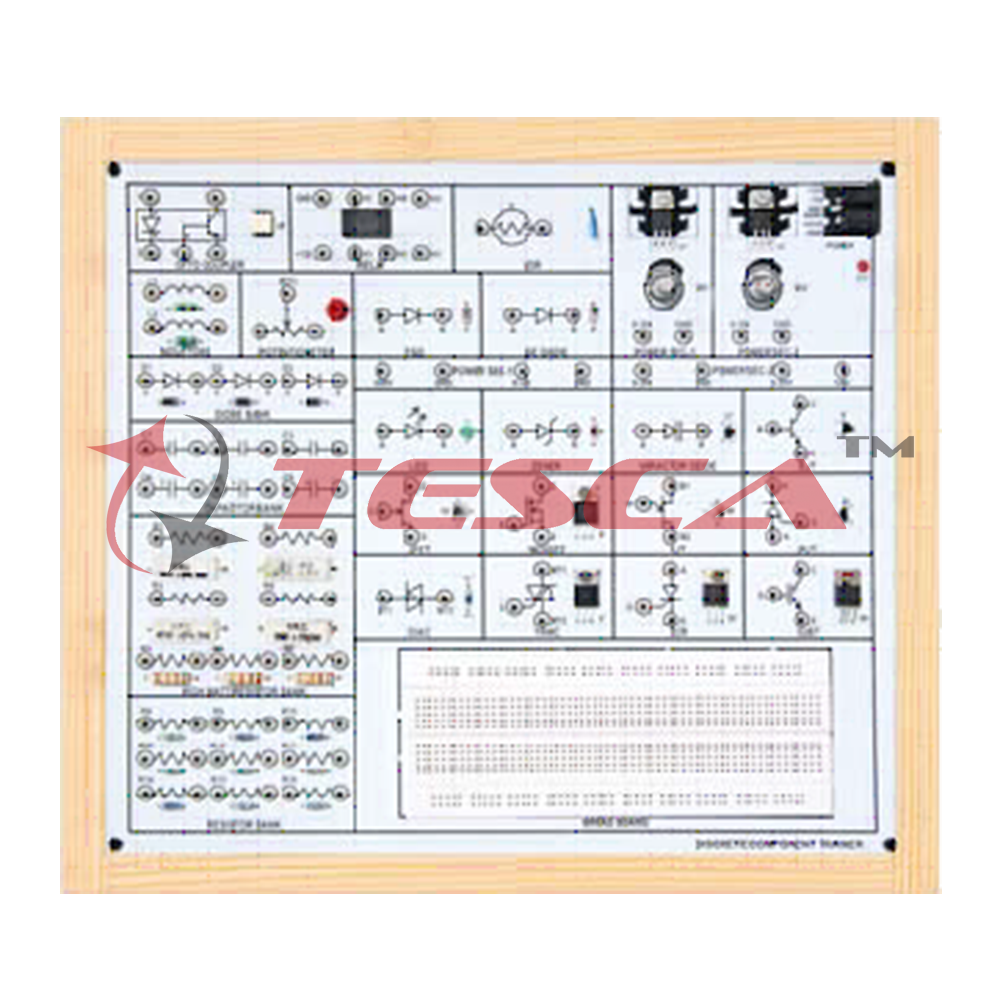

Discrete Component Trainer Kit

Order Code: 36351

Category: Analog Electronics Trainers

Covers basic semiconductor devices such as Diodes, BJT, FET, JFET, MOSFET, UJT, PUT, DIAC, TRIAC, SCR, IGBT, LDR, VDR, various Diodes, Opto-Coupler, Relay and fundamental components like R, C and L On-board resources such as Resistor, Capacitor,...



SPECIFICATION

  • Covers basic semiconductor devices such as Diodes, BJT, FET, JFET, MOSFET, UJT, PUT, DIAC, TRIAC, SCR, IGBT, LDR, VDR, various Diodes, Opto-Coupler, Relay and fundamental components like R, C and L
  • On-board resources such as Resistor, Capacitor, Diode and Potentiometer banks of different values are available
  • On-board Relay and opto-coupler
  • On-board regulated variable positive and negative power supply
  • DualDC0to30V, variable on-boardpower supply
  • Basic component study like Resistors, Capacitors, Inductors and Potentiometer
  • 6 different types of Diode characteristics study like general purpose Diode, Ge-Diode, FSD, Zener Diode, LED and Varactor Diode
  • 5 different types of transistors characteristics study like BJT, JFET, MOSFET, UJT and PUT
  • 4 different types of power component study like DIAC, TRIAC, SCR and IGBT
  • Opto-Coupler and Relay study
  • Resistors bank with different wattages
  • Capacitor bank • Inductors • Diodes
  • Potentiometer • Bread board

Experiments
Characteristic experiments

  • Study the working of Resistors, Capacitors, Inductors, Potentiometer, Relay
  • Characteristics study of Si-Diode, FSD-Diode, Ge-Diode, Zener Diode, LED, Varactor Diode, VDR
  • Characteristics study of BJT in CE, CB and CC mode

Application experiments

  • To find the value of unknown resistance
  • Study of Ohm's law
  • Study of Kirchoff's voltage and current law
  • Diode capacitance variation
  • Diode clipper and clamper
  • Many more
