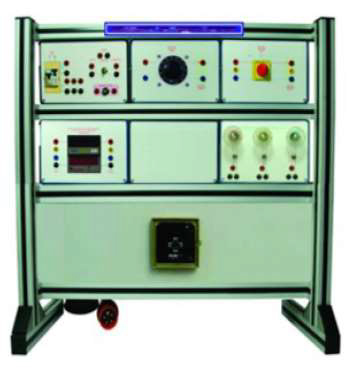

Directional / Non Directional over current

Order Code: 22236220.1.4N

Category: General Lab Equipment IV

Product Price: 1776.25$

Features:- 1 Phase Ac Input Supply Panel Variable Voltage & Current Injector Panel Over Current & Elapsed Time Measurement Panel Over Current Relay Panel Protection Relay Type (Numerical)   Specifications:- 1 ...



SPECIFICATION

Features:-

  • 1 Phase Ac Input Supply Panel
  • Variable Voltage & Current Injector Panel
  • Over Current & Elapsed Time Measurement Panel
  • Over Current Relay Panel
  • Protection Relay Type (Numerical)



Specifications:-

  1. 1 Phase Ac Input Supply Panel
    • 1 Ph. MCBs of 4A/1.6A – 2 Nos.
    • Bulb Load.
  2. Variable Voltage & Current Injector Panel
    • Consist Of 1 Phase Dimmer 230VAC/1A
    • Short Circuit Transformer With Primary
    • 230VAC/1A, Secondary 0-2-8V/12A Taps.
  3. Over Current & Elapsed Time Measurement Panel
    • Consists Of AC Ammeter Of 20 A
    • Elapsed Time Counter Range 999.001 Sec, Resolution 1 msec.
  4. Over Current Relay Panel
    •  All The Connection Of Relay Are Brought Out Onthis Panel.
    • No Trip Contacts.
    • Relay Coil
