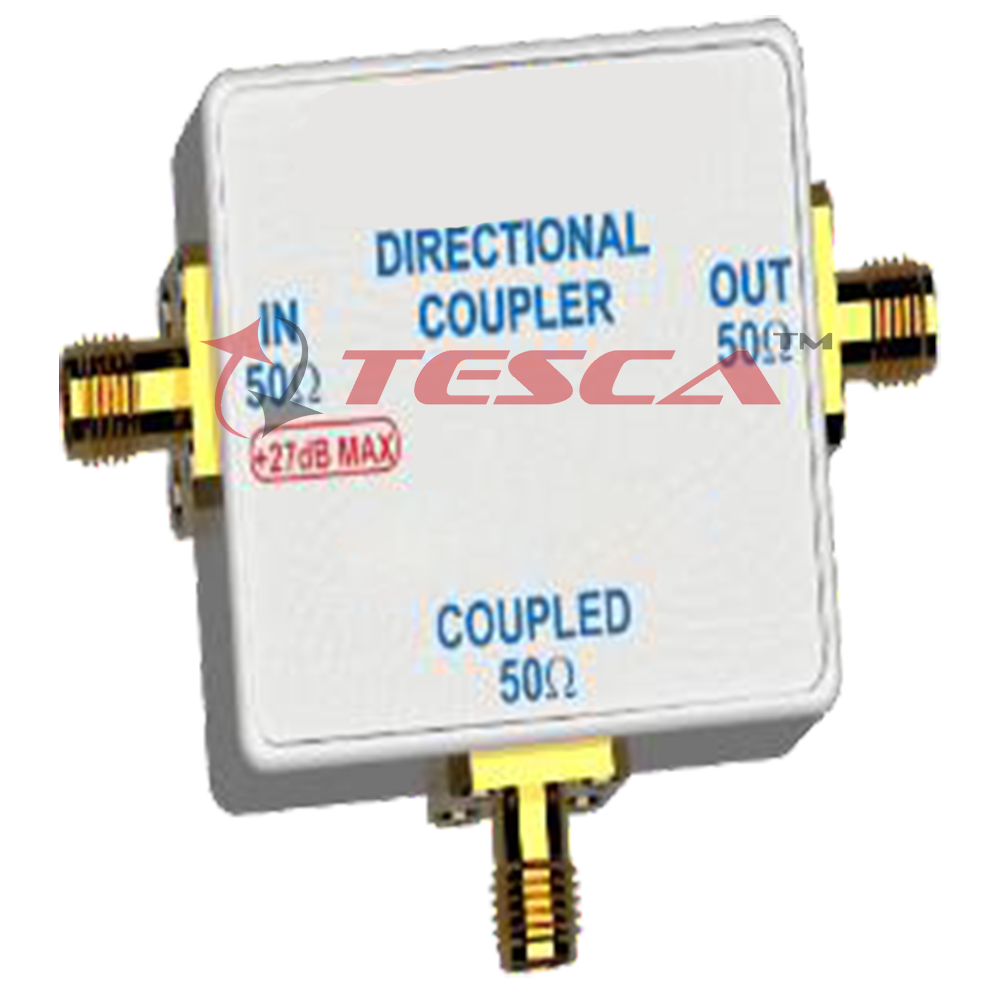

Directional Coupler TFDCF108-218
Order Code: TFDCF108-218
Category: Directional Coupler
Features: Flat Coupling Broadband Economical Small & Rigid design Description: The TFDCF108-218 is a 29 dB ± 2 dB coupling Directional coupler. TFDCF 108-218 offers an industry leading combination of...
SPECIFICATION
Features:
- Flat Coupling
- Broadband
- Economical
- Small & Rigid design
Description:
The TFDCF108-218 is a 29 dB ± 2 dB coupling Directional coupler. TFDCF 108-218 offers an industry leading combination of operating bandwidth and size. The low insertion loss makes this product a versatile for use in a variety of systems and sub system designs.
Applications:
- ISM Band
- Cellular
- Bluetooth
- Zigbee
Optional Accessories:
- SMA(M) to SMA(M) 50 Ohms cable as per user requirement
- 50ΩTermination
- Directional Coupler Kit
Electrical Specification:
- Frequency Range: 1.0 to 2.17 GHz
- Insertion Loss: 0.5dB(Max.)
- Input Power: +27dBm (Max.)
- Coupling: 29 dB ± 2 dB
- Return Loss (Input): -34dB Min
- Return Loss (Output): -38dB Min
- Operating temperature: 0 ?C to 50 ?C
- In/Out Connector: SMA (F)
Mechanical Specification:
- Shape: Rectangular Cuboidal Shape
- Weight: 55gm
