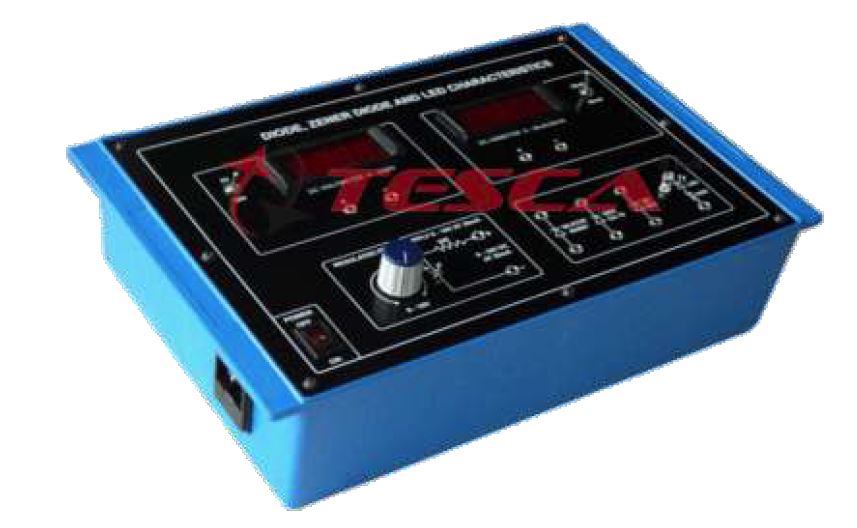

Diode Characteristic Trainer

Order Code: 23246869.6

Category: General Lab Equipment II

36363 Experimental Training Board has been designed specifically for plotting the forward and reverse bias characteristics of a semiconductor Diode (Ge & Si), Zener Diode & LED. The board is absolutely self contained and requires no other ...



SPECIFICATION

36363 Experimental Training Board has been designed specifically for plotting the forward and reverse bias characteristics of a semiconductor Diode (Ge & Si), Zener Diode & LED.

The board is absolutely self contained and requires no other apparatus.

Practical experience on this board carries great educative value for Science and Engineering Students.

Object

  • To study and plot the forward & reverse bias characteristics of a Germanium semiconductor Diode.
  • To study and plot the forward & reverse bias characteristics of a Silicon semiconductor Diode.
  • To study and plot the forward & reverse bias (breakdown) characteristics of a Zener Diode.
  • To study the characteristics of Light Emitting Diode (LED).

Features

  • The board consists of the following built-in parts :
  • 0-10V D.C. at 10mA, continuously variable regulated Power Supply with low ripple & hum and integral current limiting resistor.
  • Digital Voltmeter DC 3½ Digit Having Dual range of 2V / 20V.
  • Digital Current meter DC 3½ Digit Having Dual range of 20uA / 20mA
  • A Germanium semiconductor Diode mounted behind the panel.
  • A Silicon semiconductor Diode mounted behind the panel.
  • A Zener Diode mounted behind the panel.
  • A Light Emitting Diode (LED) mounted on the panel.
  • Adequate no. of other electronic components.
  • Mains ON/OFF switch, Fuse and Jewel light.
  • The unit is operative on 230V ±10% at 50Hz A.C. Mains
  • Good Quality, reliable terminal/sockets are provided at appropriate places on panel for connections / observation of waveforms.
  • Strongly supported by detailed Operating Instructions, giving details of Object, Theory, Design procedures, Report Suggestions and Book References
  • Weight : 2.300 Kg.
  • Dimension : W 340 x H 125x D210

List of Accessories:

Patch cords stackable 4mm length 50cm Red.............03

Patch cords stackable 4mm length 50cm Black...........02
