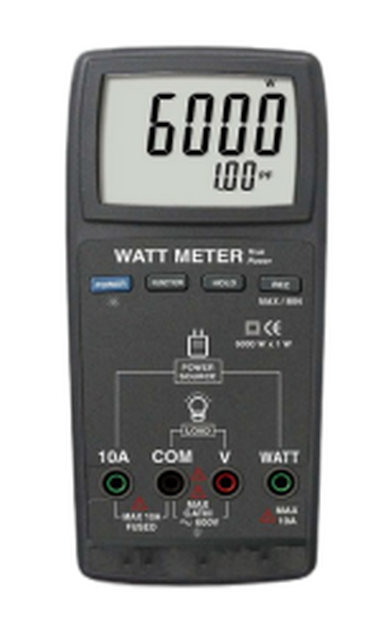

Digital Wattmeter WATT PF V A

Order Code: 23246297.25

Category: General Lab Equipment II

The Instrument has at least the following features Circuit: Custom one-chip of microprocessor LSI circuit Display: Large LCD display max. reading 9999. Digit size: 21.8X8.5 mm. Dual value display with backlight Measurement Unit: ACV 0 to 600...



SPECIFICATION

  • The Instrument has at least the following features
  • Circuit: Custom one-chip of microprocessor LSI circuit
  • Display: Large LCD display max. reading 9999. Digit size: 21.8X8.5 mm. Dual value display with backlight
  • Measurement Unit: ACV 0 to 6000.0V; ACA 0.01 to 10.00A; WATT 0 to 6000 W; PF 0.01 to 1.00 * Over input: mark indication
  • Zero: Automatic adjustment
  • Sampling Time: Approx. 1 second
  • Data Hold: Freeze the display reading
  • Memory Recall: Maximum & Minimum value. Data output; RS232/USB PC Computer interface
  • Connect the optional RS232 cable. UPCB-02 will get the RS232 plug
  • Connect the optional USB cable; USB-01 will get theUSB plug. * Operation Temperature : 0oC to 50oC (32oF to 122oF)
  • Operation Humidity : Less than 80% RH
  • Power Supply: Alkaline or Heavy duty type DC 9V battery 006P, MN1604 (PP3) or equivalent
  • Power Consumption: Approx. DC 10 mA
  • Weight: 398g/ 0.88LB
  • Dimension: 190X88X40mm (7.5X3.5X1.6 inch)
