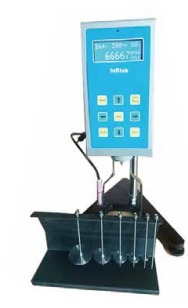

Digital Viscometer, VSC-E1 Series with the Thermostatic Baths
Order Code: 24257427.7
Category: General Lab Equipment V
Model VSC-E1 VSC-E2 VSC-E1-1 VSC-E1-2 VSC-E1-3 VSC-E2-1 VSC-E2-2 VSC-E2-3 Measuring Range?mPa·s? 12?6,000,000 80?40,000,000 640?320,000,000 6?6,000,000 40?40,000,000 320?320,000,000 Rotating Speed (RPM) 0.1?99.9 ?Stepless Gear? 0.1?200 (St...
SPECIFICATION
Model VSC-E1 VSC-E2
VSC-E1-1 VSC-E1-2 VSC-E1-3 VSC-E2-1
VSC-E2-2 VSC-E2-3
Measuring Range?mPa·s? 12?6,000,000 80?40,000,000 640?320,000,000 6?6,000,000 40?40,000,000 320?320,000,000
Rotating Speed (RPM) 0.1?99.9 ?Stepless Gear? 0.1?200 (Stepless Gear)
Number of Spindles Spindles (Code L1, L2, L3, L4) are equipped with the product Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product Spindles (Code L1, L2, L3, L4) are equipped with the product Spindles (Code R2, R3, R4, R5, R6, R7) are equipped with the product
Accuracy ±1% full-scale range in use
Repeatability ±0.5% full-scale range in use
Readability
1. when viscosity is lower than 10.0 cp: 0.01
2. when viscosity is lower than 10000 cp: 0.1
3. when viscosity is equal to or higher than 10000 cp: 1
Power adapter (input: 100-240V, 50/60Hz)
LCD screen display The LCD screen can display the viscosity, speed, torque spindle, and temperature and the maximum viscosity can be measured in the current spindle speed value.
Package Size(mm) 400*350*360
Net weight(kg): 8kg 10.5kg 10.5kg 8kg 10.5kg 10.5kg
