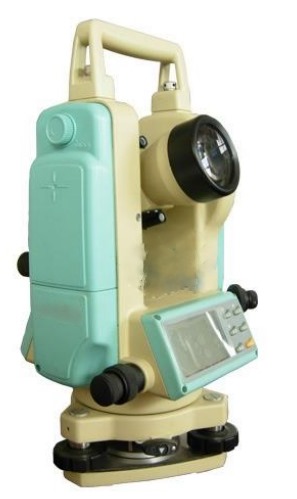

Digital Theodolite

Order Code: 24258293.3

Category: General Lab Equipment V

Features: Lightweight, compact angular measurement with high-precision laser guidance.  Long lasting Li-ion or AA battery life with up to 30 workdays of power. Convenient high-precision laser guidance. ...



SPECIFICATION

Features:

  • Lightweight, compact angular measurement with high-precision laser guidance.

  • Long lasting Li-ion or AA battery life with up to 30 workdays of power.

  • Convenient high-precision laser guidance.

  • Brand new product design utilizing premium quality of digital theodolite.

  • It should dust and water protection.

  • Capable for horizontal and vertical angle measurement.

Main Technical parameters:
Telescope:

  • Length: Min. 149mm

  • Aperture: Min. 45mm

  • Magnification: Min. 30x

  • Image: Erect

  • Field of View (at 100m): Min. 1°30'

  • Resolving Power: Min. 2.5''

  • Minimum Focus: 0.9m

  • Stadia ration: 100

  • Stadia Constant: 0

  • Specification for angle measurement

  • Method: Rotary absolute encoder.

  • Detecting: Horizontal: 1 Sides; Vertical: 1 Sides

  • Minimum Display: 1''

  • Accuracy: Min. 5''

  • Display Unit: 2 Sides

  • Specification for tilt angle compensation

  • Type: Automatic vertical compensator

  • Range of compensation: ±3' or more

  • Compensation constant: Can be Changed (Compensation is done at the same time with vertical angle 0 point)

  • Optical Plummet

  • Magnification: Min. 3x

  • Minimum focus: 0.5m

  • Sensitivity of Levels

  • Circular Level: 10'/2 mm

  • Plate Level: 30''/2mm

  • Temperature

  • Operating Temperature Range: -20 to 60ºC or better

  • Storage Temperature Range: -30 to 60ºC

  • Dust & Water Protection: IP66 or more.

  • Power Supply: 4 AA Alkaline Batteries

Following Accessories should be supplied:

  • Ranging Rod made of aluminum long 2m, and 2

  • Section along with soft carrying bag-01 No.

  • Tripod made of aluminum-01 No.

  • Lens cap-01 No.

  • Tool pouch-01 No

  • Precision screwdriver-01 No

  • Lens brush-01 No.

  • Hexagonal wrench-01 No.

  • Adjusting pin-01 No.

  • wiping cloth-01 No.

  • Hard carrying case-01 No.

  • Carrying strap-01
