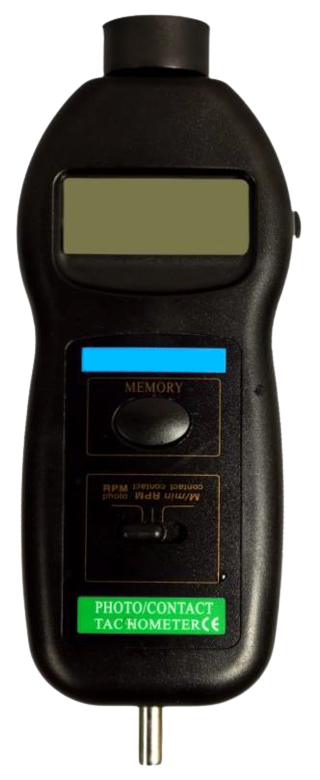

Digital Tachometer

Order Code: 22235688.5

Category: General Lab Equipment I

SPECIFICATION: Testing Range Contact : 0.5 To 19999 RPM Non Contact 2.5 to 99999 RPM (r/min) Surface Speed : 1) 0.05 to 1999.9 m/min Resolution : Contact : RPM :0.1RPM (up to 0.05 TO 1999.9 RPM) 1RPM (OVER 1000 ...



SPECIFICATION

SPECIFICATION:

  • Testing Range Contact : 0.5 To 19999 RPM
  • Non Contact 2.5 to 99999 RPM (r/min)
    • Surface Speed : 1) 0.05 to 1999.9 m/min

Resolution : Contact :

  • RPM :0.1RPM (up to 0.05 TO 1999.9 RPM)
    • 1RPM (OVER 1000 RPM)
    • Surface Speed: 0.01 m/min(0.5 to 99.99m/min)
    • m/min(over 100 m/min)
    • Non Contact : 0.1RPM (2.5 TO 999.9 RPM)
    • 1RPM (OVER 1000 RPM)
  • Accuracy ±0.05%
  • Testing Parameters : RPM, m/min, ft/min
  • Sampling Time : 0.8 sec (over 60 RPM)
  • Operation Temperature : 0°C to 50°C
