Digital Power Meter

Order Code: 18193739.55

Category: General Lab Equipment IV

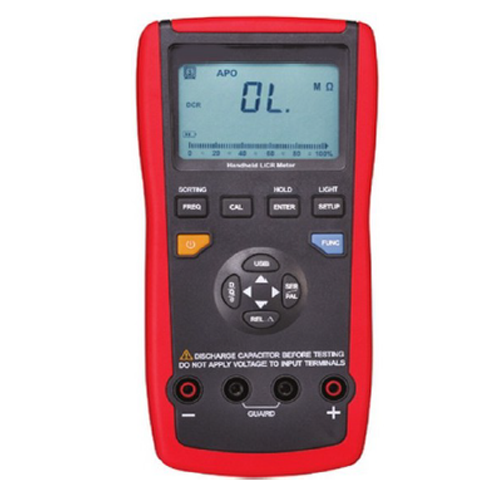

Digital LCR meter. Dual LCD display +analog bar. Measurements: Capacitance 200pF...200mF, Inductance 200μH...20kH, Resistance 20Ω...200MΩ, quality factor, dissipation factor, phase angle, resistance. DCR. Frequency: 100Hz, 120Hz, 1k...



SPECIFICATION

  • Digital LCR meter. Dual LCD display +analog bar. Measurements: Capacitance 200pF...200mF, Inductance 200μH...20kH, Resistance 20Ω...200MΩ, quality factor, dissipation factor, phase angle, resistance. DCR. Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz. Measurement in parallel mode (Lp, Cp, Rp) and series mode (Ls, Cs, ESR). Relative measurements and data hold. Mini-USB interface.
  • Features:-
  • 1,999 counts dual LCD display
  • Analog Bar display
  • Mini USB port connect to PC
  • Auto LCR smart check and measurement
  • Parameters Ls, Lp, Cs, Cp, DCR, ESR, D, Q and θ
  • Basic accuracy: 0.3% with resolution of 0.01%
  • Measurement frequency up to 100 kHz
  • Sorting function
  • Relative measurement
  • Data hold
  • Backlight, full angle for LCD display
  • 4-terminal measurement configuration
  • Automatic power off
  • Battery and external power supply
  • Battery voltage indication
  • Frequency: 100/120/1k/10k/100kHz
  • Display: Dual display + analog bar display
  • Test level: 0.6Vrms
  • Range mode: Auto and Hold
  • Equivalent Circuit: Parallel and Series
  • Calibration function: Open/Short
  • Interface: Mini-USB
  • Measurement speed: approx. 1.2 times/second
  • Measurement terminal: 4-terminal
  • Basic accuracy: 0.3%
  • Power: AAA*6 battery or external power supply
  • Auto power off: 5 min (with batteries)
  • Operation environment: temperature (0…40°C), humidity (90%RH, 40°C,  no condensation)
  • Storage temperature: -25°C…50°C
  • Size: 8×4×2in/ 203.2×101.6× 50.8mm
  • Weight: 20oz/567g
  • Specifications LCR Frequency Range
  • 100/120Hz 20mH…20kH 1kHz 2000μH…2000H 10kHz 200μH…20H 100 kHz 20μH…200mH
  • 100/120Hz  20nF…20mF 1kHz 2000pF…2mF 10kHz 200pF…200μF 100kHz 200pF…20μF
  • 100/120Hz 200Ω…200MΩ 1kHz 20Ω…200MΩ 10kHz 20Ω…20MΩ 100kHz 20Ω…2MΩ Accessories
  • 1. LCR testing leads (pair)
  • 2. LCR clips (open and short)
  • 3. Single black crocodile lead
  • 4. USB – mini cable
  • 5. Rechargeable batteries (3 pairs)
  • 6. Soft carrying bag
  • 7. User manual in English.
