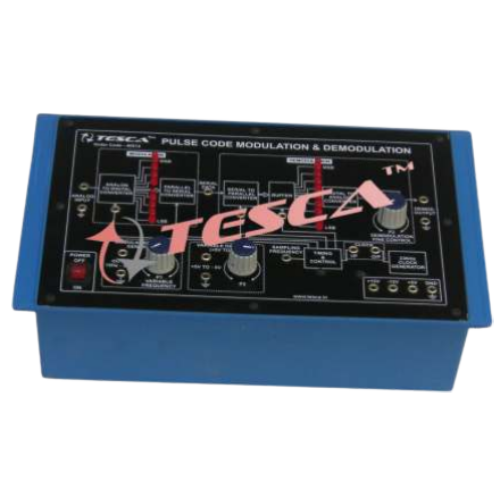

Digital Modulation / Demodulation Kit

Order Code: 22235521.1.13

Category: General Lab Equipment I

With this board the students can study the operating principle of the digital communications using the most common techniques such as PCM modulation, PAM modulation, PFM modulation. Technical Specification: PCM modulator and demodulator 8-...



SPECIFICATION

With this board the students can study the operating principle of the digital communications using the most common techniques such as PCM modulation, PAM modulation, PFM modulation.

Technical Specification:

  1. PCM modulator and demodulator
  2. 8-bit coding with compression, Mμ or A selectable through bridge
  3. 2 channels for transmission and 2 channels for reception
  4. Possibility to use 1 or 2 digital channels
  5. Integrated anti-aliasing and band limiting analogue filters in reception, capacitive switching type
  6. Passing band from 300 Hz up to 3400 Hz
  7. PAM signal generation, demodulation, transmission for each single channel
  8. PAM modulator and demodulator
  9. Two channel time division
  10. Regeneration of the synchronism and channel signals
  11. Sampled, but not quantified signal
  12. PTM Signal Generation
  13. Passing band from continuous to 4000Hz
  14. PWM and PPM modulator and demodulator
  15. Single channel with passing band from continuous to 4000 Hz
  16. Regeneration of the synchronism signal
  17. Conversion of the PWM signal to PPM and from the PPM signal to PWM
  18. PCM signal generation and demodulation
  19. PCM Signal Time-Division Multiplexing
  20. PFM modulator and demodulator
  21. Single channel with passing band from 300 Hz to 3400 Hz
  22. Circuit realization with the use of a PLL
  23. Delta modulator and demodulator Single channel with passing band from continuous to 3400 Hz Timing Ramp signal generation Channel noise
  24. Possibility to adjust the noise that is superimposed to both analogue and digital signals
  25. Analogue filters 2 analogue filters with 3400 Hz limited band
  26. Output amplifier 2 amplifiers able to pilot a small loudspeaker
  27. Microphone amplifier
  28. Microphone amplifier with automatic gain control
  29. Channel bandwidth
  30. Navigator software that allows students to perform their learning activities through a Personal Computer.
