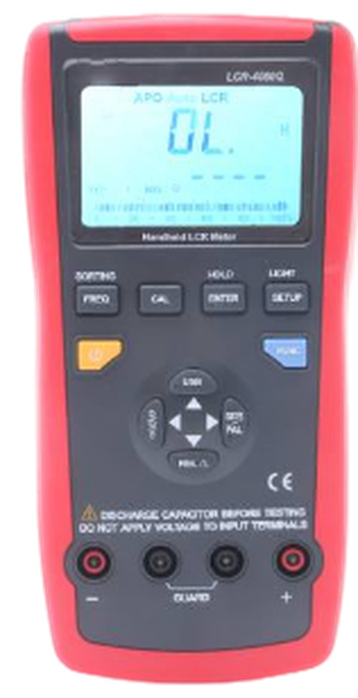

Digital LCR Meter

Order Code: 23246299.9

Category: General Lab Equipment II

19,999/1,999 counts dual LCD display Auto LCR smart check and measurement Serial/Parallel modes are selectable Ls/Lp/Cs/Cp with D/Q/θ /ESR parameters Support DCR mode 1.00 ? to 200.0 M? Five different test frequencies should availa...



SPECIFICATION

  • 19,999/1,999 counts dual LCD display
  • Auto LCR smart check and measurement
  • Serial/Parallel modes are selectable
  • Ls/Lp/Cs/Cp with D/Q/θ /ESR parameters
  • Support DCR mode 1.00 ? to 200.0 M?
  • Five different test frequencies should available: 100 Hz/120 Hz/1 KHz/10 KHz/100 KHz
  • Range:
  • L: 200.00 uH to 2000.0 H or higher
  • Accuracy: ± (1.5% + 5d)/± (1.0% + 5d)/± (2% + 5d)
  • C: 2000.0 pF to 2.000 mF or higher
  • Accuracy: ± (1.5% + 5d)/± (1.0% + 5d)/± (2% + 5d)/± (3% + 5d)
  • R: 20.000? to 200.0 M?
  • Accuracy: ± (0.8% + 5d), ± (1.5% + 5d), ± (2.5% + 5d)
  • Multi-level battery detector
  • Display: LCD size: 56.4 X 52.9 mm
  • Data Hold: Freeze the display reading
  • Power Supply: DC 9V battery
