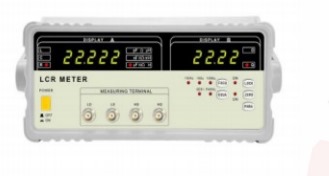

Digital LCR meter(L-Q, C-D, R-Q)

Order Code: 24257564.1.32

Category:

 Measuring Parameters: L-Q, C-D, R-Q Test Frequency: 100 Hz, 1 kHz, 10 kHz Test Level: 0.3Vrms Basic Accuracy: 0.25% Display Range : R 0.0001 Ω-99.99 MΩ C 0.01 pF -19999 μF L 0.01 μH -9999 H D 0.0001 - 9.999 Q 0.01 -...



SPECIFICATION

  1.  Measuring Parameters: L-Q, C-D, R-Q
  2. Test Frequency: 100 Hz, 1 kHz, 10 kHz
  3. Test Level: 0.3Vrms
  4. Basic Accuracy: 0.25%
  5. Display Range : R 0.0001 Ω-99.99 MΩ C 0.01 pF -19999 μF L 0.01 μH -9999 H D 0.0001 - 9.999 Q 0.01 - 9999
  6. Sampling Rate: 5 times/sec.
  7. Equivalent Circuit: Series, Parallel
  8. Test Mode: Auto, Hold
  9. Calibration: Open circuit, Short circuit, and Zeroing
  10. Test Ports: 5 terminals
  11. Display Mode: Direct readout
  12. Operating Ambient : 0C° - 40C°, =90% RH
  13. Power : AC110V or 220V ± 10%, 50/60Hz
  14. Power Consumption: =20VA
  15. Dimension: Approx. 350 mm × 110 mm × 340 mm
  16. Weight: About 3.5kg
