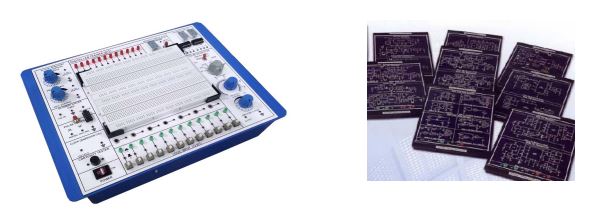

Digital Lab

Order Code: 21224782.1

Category: General Lab Equipment IV

Power Supplies: Operated on Mains power 230V, 50Hz +10% DC Power Supplies IC Regulated 0-15V, 500mA DC Power Supplies IC Regulated 0-30V, 500mA DC Power Supplies Fixed +5V, 1A DC Power Supplies Fixed -5V,500mA



SPECIFICATION

Power Supplies:

  • Operated on Mains power 230V, 50Hz +10%
  • DC Power Supplies IC Regulated 0-15V, 500mA
  • DC Power Supplies IC Regulated 0-30V, 500mA
  • DC Power Supplies Fixed +5V, 1A
  • DC Power Supplies Fixed -5V,500mA

Function Generator:

  • 0-1MHz Pulse Generator

Components are mounted on the panels are:

  • Logic Inputs & Outputs 12 Bit
  • Buzzer as Continuity Tester
  • Logic Probe Inbuilt.
  • 7 Bit 2mm to 4mm Conversion Sockets.
  • Low Frequency Clock Generator 1Hz-10Hz.
  • Logic Low Frequency Mono Pulsar.
  • 2 Bit BCD To 7 Segment Indicators With Inputs A, B, C, D Inputs.
  • Breadboards: Unique solder -less large size, spring loaded breadboard consisting of one Terminal Strips with 640 tie points each and 2 Distribution Strips with 100 tie points each, totaling to 840 tie points. (Size: 55mm X 170mm approx).
