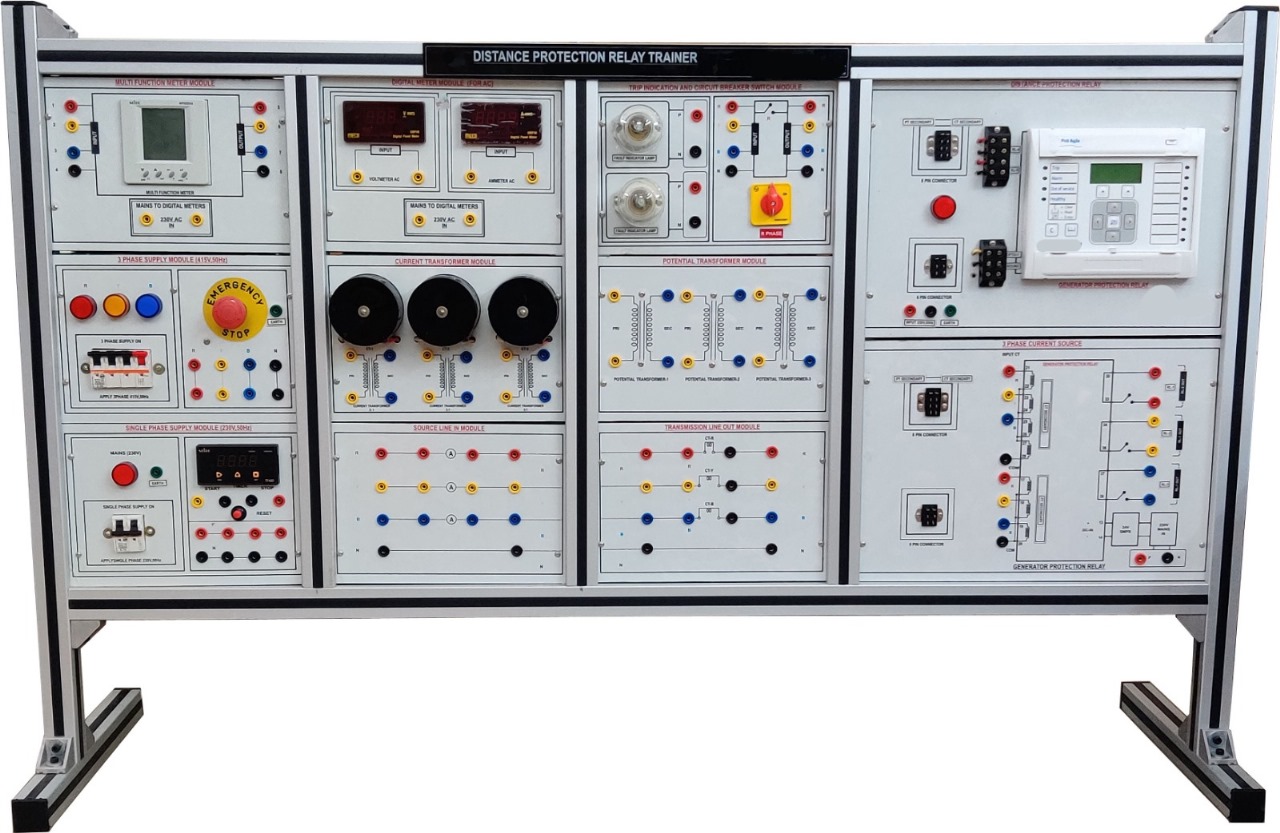

Digital Impedance Relay Test Set-Up

Order Code: 24258254.3

Category: General Lab Equipment V

Single Phase Variable Voltage Source 0-230V @ 1.5Amp. Input supply : ac 230v 50/60 Hz +/-10% CT to monitor the current. PF to monitor voltage. Simulation of Impedance  of Transmission Line with di(ferent tapings. Im...



SPECIFICATION

  • Single Phase Variable Voltage Source 0-230V @ 1.5Amp.

  • Input supply : ac 230v 50/60 Hz +/-10% CT to monitor the current.

  • PF to monitor voltage. Simulation of Impedance  of Transmission Line with di(ferent tapings.

  • Impedance Sensing and measuring Micro Controller based Unit.

  • Digital Voltmeter.

  • Digital Ammeter.

  • Loading Arrangement. MCB Protection, Lamp Indicators etc.

  • Impedance Relay (Simulated) with sening Arrangement.

  • Arrangement to create fault.
